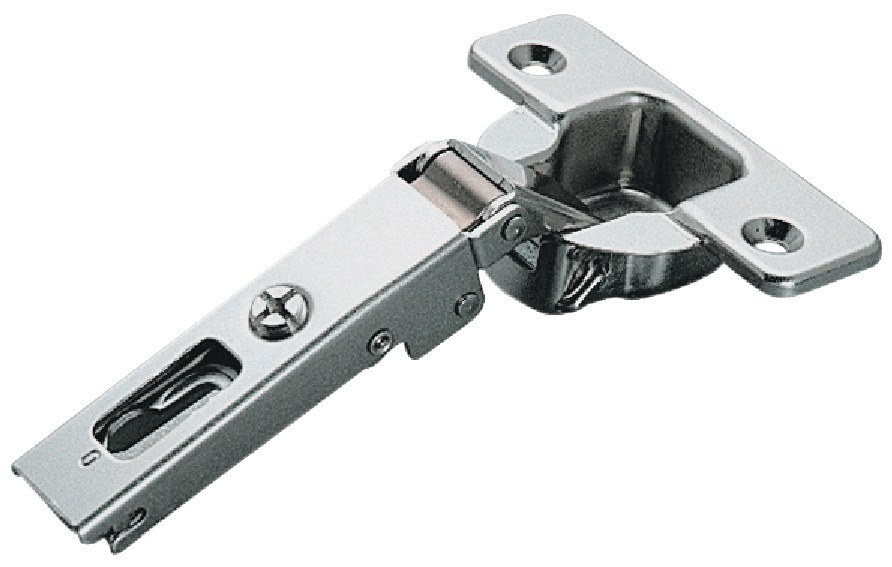

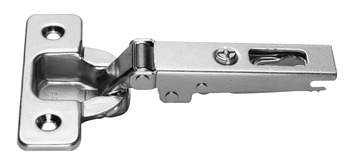

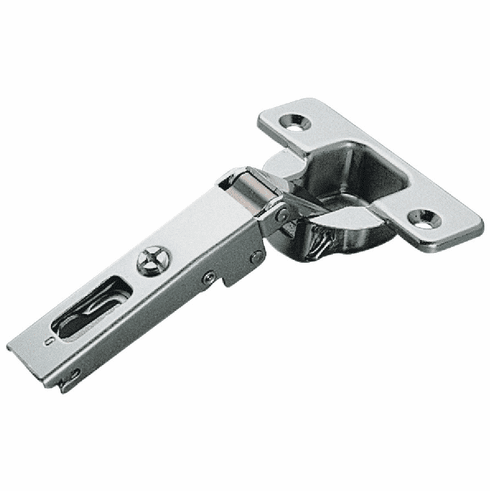

Hafele 329.03.558 Concealed Hinge, Duomatic 120 degree, full overlay mounting Self close, dowel mounting, model C2R9A99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.03.558

  Product Title: Concealed Hinge, Salice 120�, full overlay mounting, For wooden doors, for standard applications with convenient opening angle, Self close, dowel mounting, model C2R9A99

  Category: Concealed Hinge, Salice 120�, full overlay mounting, For wooden doors, for standard applications with convenient opening angle

  Item Details �

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 120�

  - Cup drilling depth : 11.00 mm

  - Cup drilling � : 35.00 mm

  - Cup fixing : for screw fixing

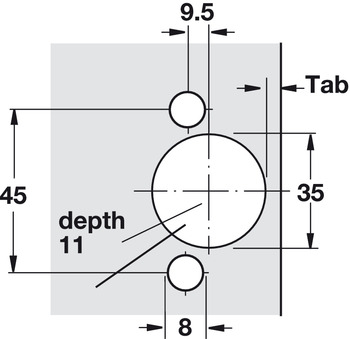

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?�?4.5 mm, Height adjustment �2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

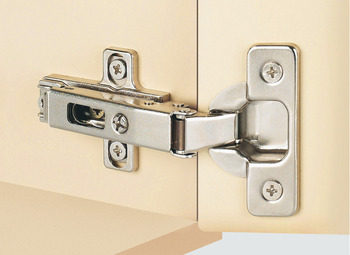

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM


  Additional Information �

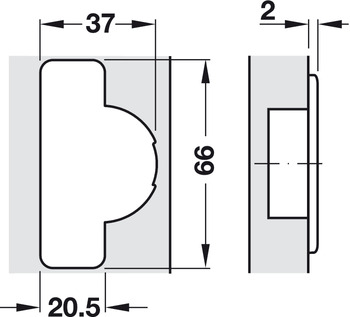

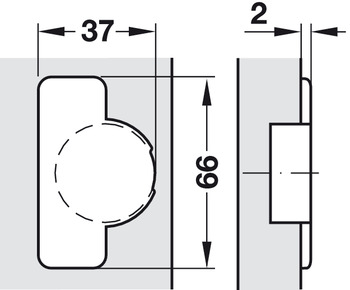

  Dimensions and gap specifications in the drawings and tables are calculated:with factory settings With mounting plate distance 0�mm for door offset with max. opening angle

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page�9.22



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf
