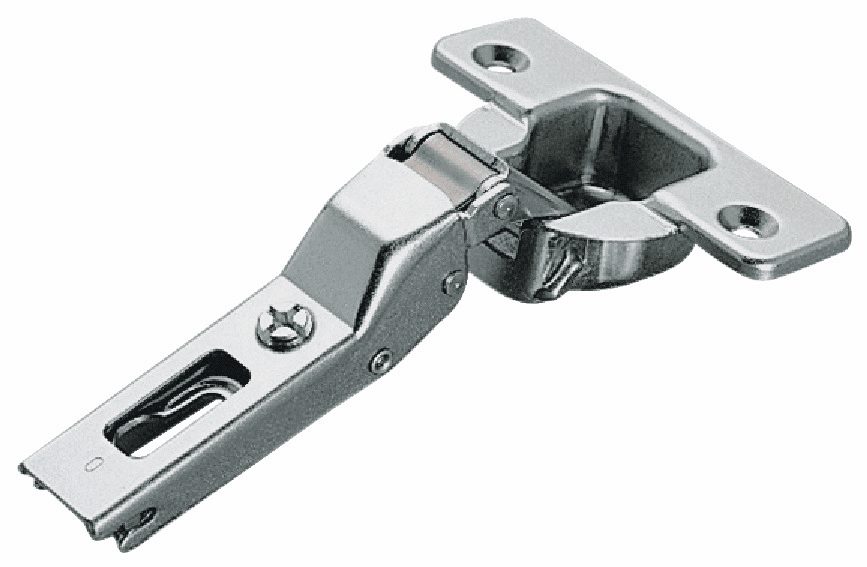

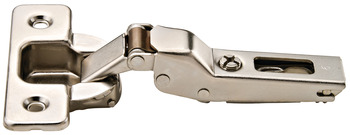

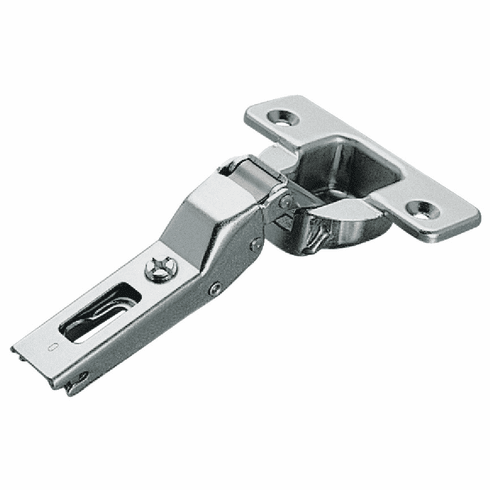

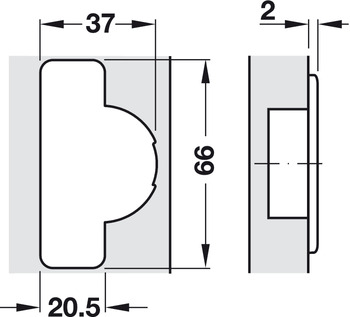

Hafele 329.03.567 Concealed Hinge, Salice 200 Series, 120 degree Opening Angle, Half Overlay Self close, dowel mounting, model C2R9G99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.03.567

  Product Title: Concealed Hinge, Salice 200 Series, 120� Opening Angle, Half Overlay, For wooden doors, for standard applications with convenient opening angle, Self close, dowel mounting, model C2R9G99

  Category: Concealed Hinge, Salice 200 Series, 120� Opening Angle, Half Overlay, For wooden doors, for standard applications with convenient opening angle

  Item Details �

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 120�

  - Cup drilling depth : 11.00 mm

  - Cup drilling � : 35.00 mm

  - Cup fixing : for screw fixing

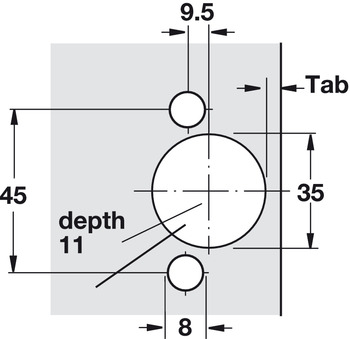

  - Drilling pattern : 45/9.5

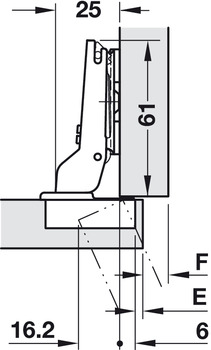

  - Adjustment facility : Side adjustment -1.5?�?4.5 mm, Height adjustment �2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

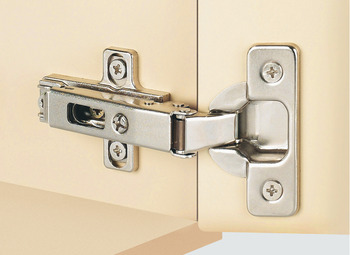

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM
