Hafele 372.37.532 Free Fold, E3FO, gray, 580-650mm, 9-19lb (1 ), 37237532, 372-37-532Zoom

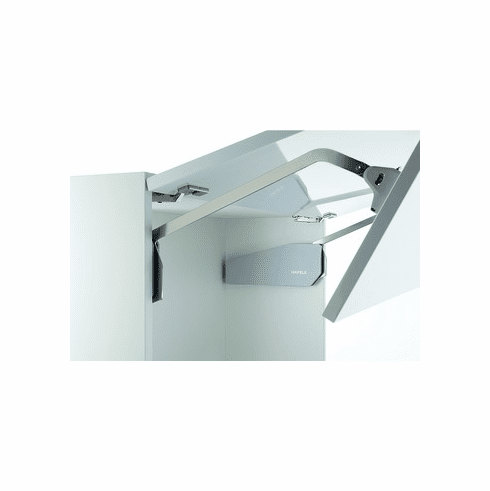

Hafele 372.37.532 Double Door Lift-Up Fitting, Free Fold For 2-piece frame doors, Door weight: 9.5-19.4 lbs., model E3fo

$157.22$196.52You Save: $39.30 (20%)
Item# Hafele-372.37.532
Availability: in stock (1 or less, Next Stock: 2-6 weeks)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 372.37.532

    Product Title: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors, Door weight: 9.5-19.4 lbs., model E3fo

    Category: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors

    Item Details …

    -     Even high front panels can be folded up in a space-saving way

    - Modern design thanks to clear lines

    - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

    - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel

    - Even high front panels can be lifted up in a space-saving way

    - Modern design with clear-cut contours

    - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation

    - Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel

    - Area of application : For 2-piece or aluminum frame doors of equal size

    - Material : Plastic

    - Color/finish : Fitting: Nickel plated

    - Color/Finish cover : cover cap: Gray, white or anthracite

    - Lid material : Wood, Aluminum frame

    - Flap type : two-piece with division 1:1

    - Cabinet depth : Min. 11 5/16"

    - Installation depth : 288.00 mm

    - Installation length :

    - Adjustment facility : Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)Holding power/centre pull (via fitting)

    - Supplied with:

    - 2 Fittings (right/left)

    - Front mounting material for wood doors or doors with wide

    - Aluminum frame

    - Installation instructions

    - Paper drilling template

    - 2 Cover caps for fitting (right/left)


    Additional Information …

    Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Catalog Page: selection_9.132-9.145.pdf



    Please contact us for more information about this product

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame (choose one):


    Adapter, for Doors with 20 mm (13/16") Aluminum Frame (choose one):


    Optional Accessories:

    • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
    • Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
    • Adapter, for Doors with 20 mm (13/16") Aluminum Frame
    • Drilling Jig, for Free Fold, Side Wall
    • Drilling Jig, for Front Panel Brackets
