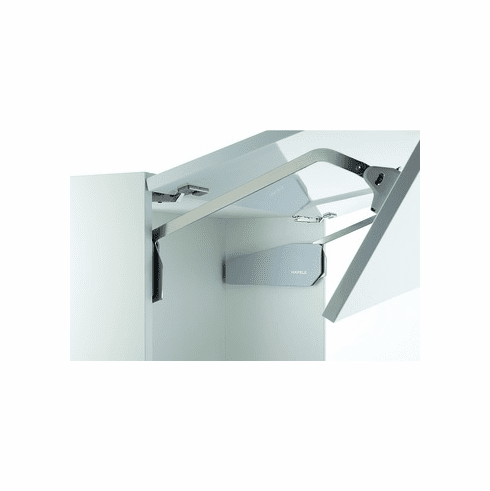

Hafele 372.37.533 Double Door Lift-Up Fitting, Free Fold For 2-piece frame doors, Door weight: 13.2-26.8 lbs., model E4fo
Product Information
Description
Manufacturer: Hafele
Item: 372.37.533
Product Title: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors, Door weight: 13.2-26.8 lbs., model E4fo
Category: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors
Item Details …
- Even high front panels can be folded up in a space-saving way
- Modern design thanks to clear lines
- Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel
- Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel
- Even high front panels can be lifted up in a space-saving way
- Modern design with clear-cut contours
- Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation
- Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel
- Area of application : For 2-piece or aluminum frame doors of equal size
- Material : Plastic
- Color/finish : Fitting: Nickel plated
- Color/Finish cover : cover cap: Gray, white or anthracite
- Lid material : Wood, Aluminum frame
- Flap type : two-piece with division 1:1
- Cabinet depth : Min. 11 5/16"
- Installation depth : 288.00 mm
- Installation length :
- Adjustment facility : Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)Holding power/centre pull (via fitting)
- Supplied with:
- 2 Fittings (right/left)
- Front mounting material for wood doors or doors with wide
- Aluminum frame
- Installation instructions
- Paper drilling template
- 2 Cover caps for fitting (right/left)
Additional Information …
Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.132-9.145.pdf
Please contact us for more information about this productBrand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame (choose one):installation: With chipboard screws
installation: With Euro screws372.64.796
372.64.797Click to order
Click to order
Adapter, for Doors with 20 mm (13/16") Aluminum Frame (choose one):For Free fold, Nickel plated 372.37.044 Click to order
Optional Accessories:- Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
- Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
- Adapter, for Doors with 20 mm (13/16") Aluminum Frame
- Drilling Jig, for Free Fold, Side Wall
- Drilling Jig, for Front Panel Brackets
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
