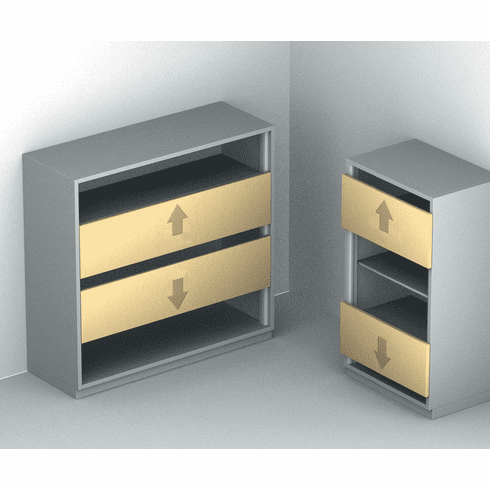

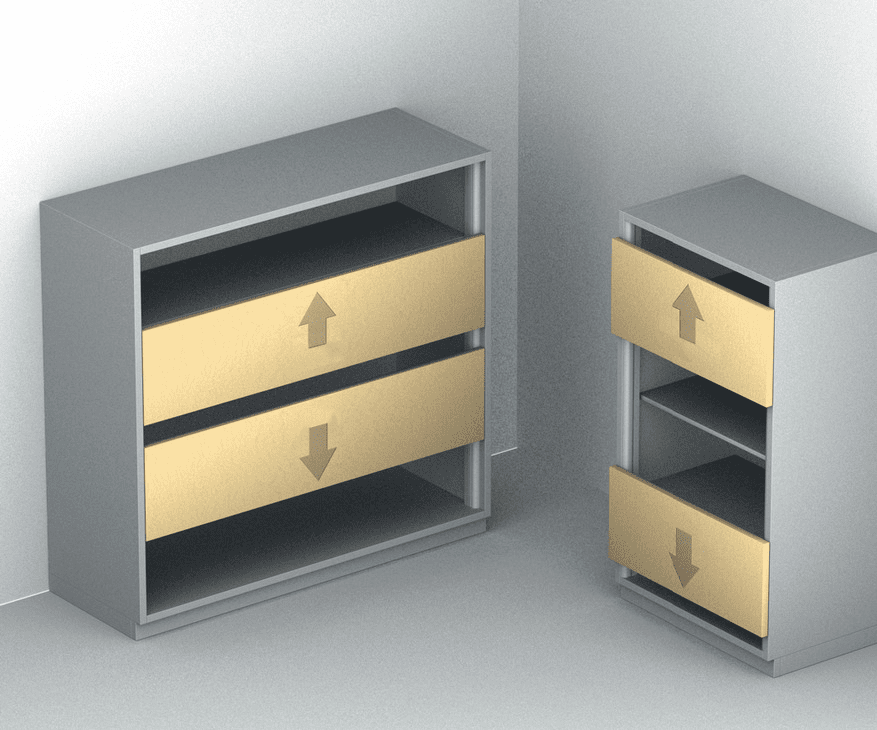

Hafele 403.20.010 EKU Libra 20 H Synchro, Set For vertical sliding doors with 2 synchronized, bi-parting doors, for door weights up to 44 lbs., Infront/Vorfront

Product Information

• Description

  Manufacturer: Hafele
  Item: 403.20.010

  Product Title: Sliding door fitting, Hawa Libra 20 Synchro H IF/VF, set, For vertical sliding doors with 2 synchronized, bi-parting doors, for door weights up to 44 lbs., Infront/Vorfront

  Category: Sliding door fitting, Hawa Libra 20 Synchro H IF/VF, set, For vertical sliding doors with 2 synchronized, bi-parting doors, for door weights up to 44 lbs., Infront/Vorfront

  Item Details …

  - For 2 wood doors that are synchronized

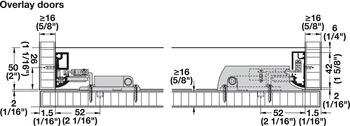

  - All hardware is surface mounted

  - Number of doors : 2.00

  - For door thickness : ?16 mm

  - For door width : ?1,600 mm

  - For door weight : ?20 kg

  - Running position : Bottom, lateral, top

  - Number of rollers : 1.00

  - For side panel thickness : min 16 mm

  - For door material : wood

  - Door width max. : Max. 63"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs

  - Side panel thickness min. : 5/8"

  - Cabinet version : with synchronized running doors

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?1,000 mm

  - Material/finish : Rollers: Plastic

  - Installation : Running gear and guide for screw fixing

  - Counterweight : The bottom door represents the counterweight for the top door, therefore both doors must be of equal weight

  - Type of opening : linear

  - Number of doors per system max. : 2

  - Order reference

  - In general, doors should be the same size, and must weigh the same as they need to counter balance each other

  - Supplied with:

  - 4 sliding hardware with cam adjustment

  - 4 sliding hardware with spring

  - 2 reverse roller

  - 2 door safety

  - 4 rope brackets

  - 2 tightening bolt for rope bracket

  - 2 pcs of rope

  - 2 cover caps

  - 8 covers for sliding hardware


  Additional Information …

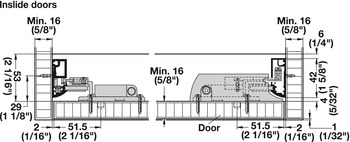

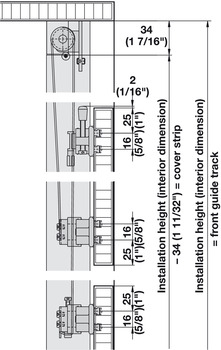

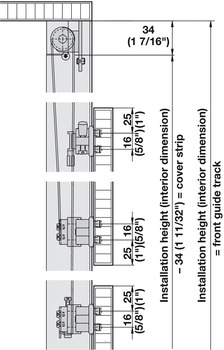

  Please order front guide track, back guide track and cover strip separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Hawa Libra 20 H Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.103



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.88-7.89.pdf

  Hafele 403.20.010, 403-20-010, 40320010, 403.20


  Specifications/Hafele Catalog - Page# FC7.139: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Guide Track, for Hawa Libra (choose one):


  • With chipboard screws with countersunk head Ø 4.0 mm, 2.5 m

    403.21.902

    Click to order



  Optional Accessories:



  • Clip-On Cover Strip, For Hawa Libra 20 H/20 H Synchro
