Hafele 403.21.902 Front Guide Track, EKU Libra 20 H 2.5 m

Product Information

• Description

  Manufacturer: Hafele
  Item: 403.21.902

  Product Title: Front Guide Track, for Hawa Libra, With chipboard screws with countersunk head Ø 4.0 mm, 2.5 m

  Category: Front Guide Track, for Hawa Libra, With chipboard screws with countersunk head Ø 4.0 mm, 2.5 m

  Item Details …

  - Product type : Front Guide Track

  - Color/finish : Silver colored, anodized

  - Length : 2,500 mm

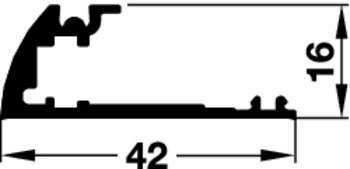

  - Dim. (W x H) : 42 x 16 mm

  - Length (inch) : 2' 1 19/32"

  - Track version : Single

  - Suitable for : Hawa Libra

  - Position : behind

  - Material : Aluminum

  - Installation : For screw fixing with chipboard screws with countersunk head Ø 4.0 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.101

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.103



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.86-7.87.pdf

  Hafele 403.21.902, 403-21-902, 40321902, 403.21


  Specifications/Hafele Catalog - Page# FC7.139: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
