Hafele 405.82.215 Sliding Door Hardware, EKU Clipo 15 H, set For straight or curved wooden doors, for door weights up to 15 kg, for door heights up to 1,400 mm, Infront, for 2 doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.82.215

  Product Title: Sliding Door Hardware, Hawa Clipo 15 H, set, For straight or curved wooden doors, for door weights up to 15 kg, for door heights up to 1,400 mm, Infront, for 2 door

  Category: Sliding Door Hardware, Hawa Clipo 15 H, set, For straight or curved wooden doors, for door weights up to 15 kg, for door heights up to 1,400 mm, Infront, for 2 door

  Item Details …

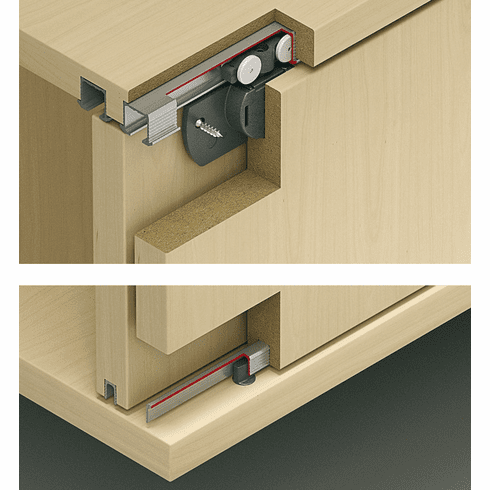

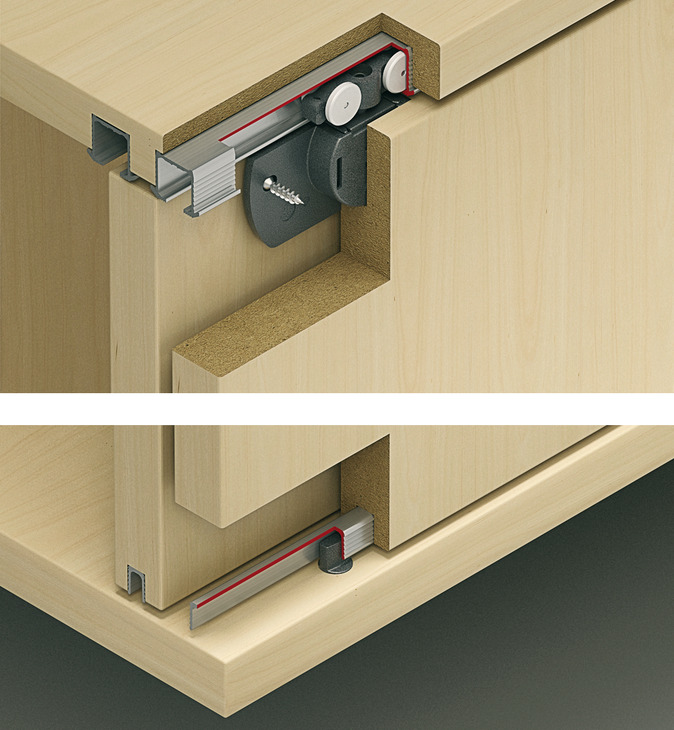

  - Running gears with clip-mounting, plastic rollers with metal axles

  - Quick door mounting

  - No guide rails in the floor

  - Housing suitable for screw-mounting

  - A wood cover panel is not needed

  - Number of doors : 2.00

  - For door thickness : 16?–?19 mm

  - For door width : ?1,000 mm

  - For door weight : ?15 kg

  - Running position : Top

  - Number of rollers : 1.00

  - Height adjustment : ±1.5 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - Door width max. : 39 3/8"

  - For door thickness min. : 5/8" and 3/4"

  - Height adjustment : ±1/16"

  - Height adjustable :

  - Door height min. : 55 1/8"

  - Cabinet version : with straight and curved door leaves

  - Set : Set without tracks

  - Area of application : For door weights up to 15 kg

  - For door height : ?1,400 mm

  - Door stopper : Top stopper, with retainer for sliding into single top running track

  - Material/finish : Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±1.5 mm, Height: ±1.5 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

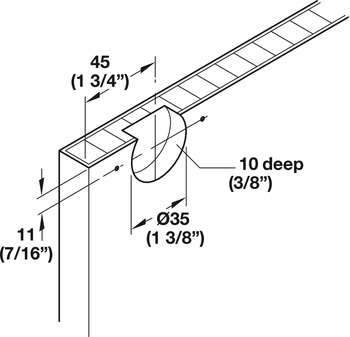

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Type of opening : linear

  - Number of doors per system max. : 2
