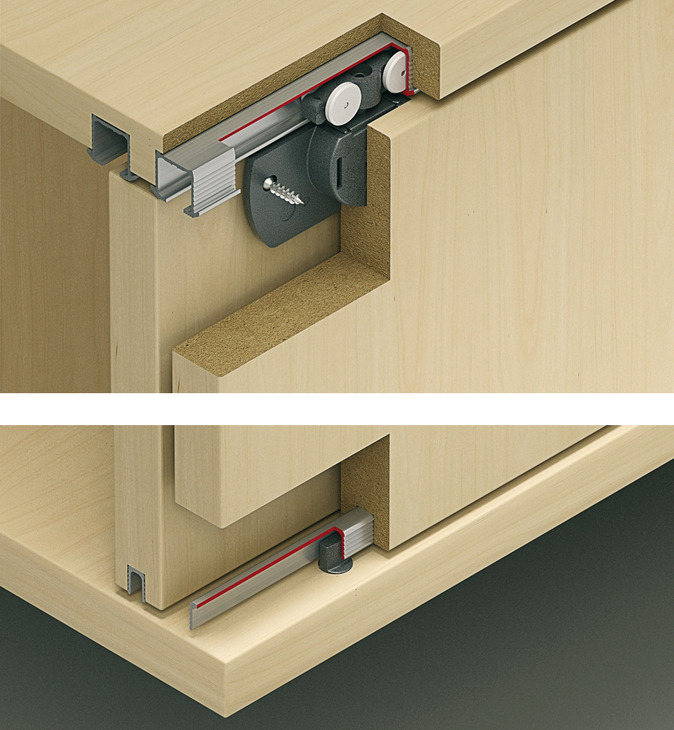

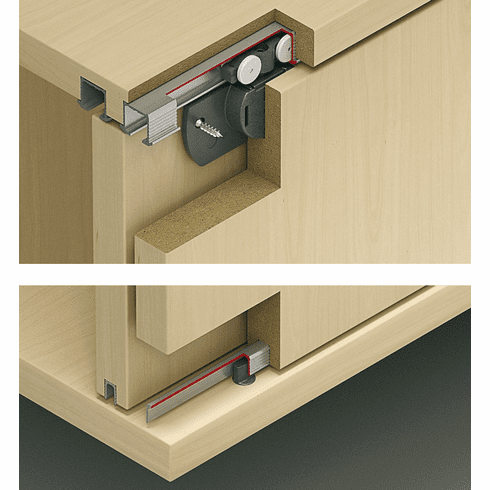

Hafele 405.82.216 Hawa Clipo 16 H IF Sliding Door Set, for 2 doors (1 kit), 40582216, 405-82-216Zoom

Hafele 405.82.216 Sliding Door Hardware, EKU Clipo 16 H Inslide, set For Top Hung, for Wooden Sliding Doors, for Door Weights up to 35 lbs., Inslide

$155.58$194.48You Save: $38.90 (20%)
Item# Hafele-405-82-216
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 405.82.216

    Product Title: Sliding Door Hardware, Hawa Clipo 16 IF, set, For Top Hung, for Wooden Sliding Doors, for Door Weights up to 35 lbs., Inslide

    Category: Sliding Door Hardware, Hawa Clipo 16 IF, set, For Top Hung, for Wooden Sliding Doors, for Door Weights up to 35 lbs., Inslide

    Item Details …

    -     Set inlcudes hardware for two sliding doors.

    - Running gears with clip-mounting, plastic rollers with metal axles

    - Optional soft close

    - Quick door mounting

    - No guide rails in the floor

    - A wood cover panel is not needed

    - Number of doors : 2.00

    - Soft closing mechanism : with clip-in door stopper

    - For door thickness : 16?–?19 mm

    - For door width : ?1,000 mm

    - For door weight : ?16 kg

    - Running position : Top

    - Number of rollers : 4.00

    - Height adjustment : -1?–?2 mm

    - Running gear guided by : Friction bearing

    - For door material : aluminium frame

    - For door thickness max. : 3/4"

    - Door width max. : 39 3/8"

    - For door thickness min. : 5/8" - 3/4"

    - Door weight max. : 35 lbs.

    - Height adjustment : +1/16-1/32"

    - Height adjustable :

    - Door height min. : 55 1/8"

    - Cabinet version : with thin cabinet top panels, with narrow doors

    - Set : Set without tracks

    - Area of application : For 2 doors

    - For door height : ?1,400 mm

    - Door stopper : Top clip-in door stopper, for sliding into running track

    - Material/finish : Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

    - Adjustment facility : Height adjustment: -1?–?2 mm, Height +2/-1 mm on running gear using adjusting wheel

    - Door adjustment via : adjusting wheel

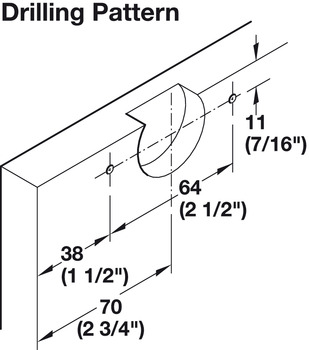

    - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

    - Type of opening : linear

    - Number of doors per system max. : 2

    - Order reference

    - Please order running and guide track separately.

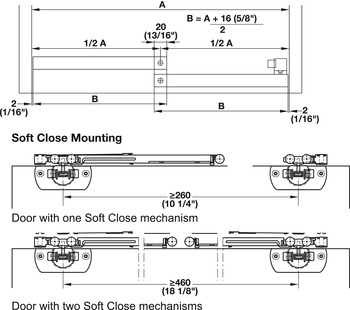

    - Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set for soft closing on both sides separately.

    - Supplied with:

    - 4 Running gears

    - 4 housing pieces

    - 1 soft stop

    - 2 track stoppers

    - 2 floor guides

  • Data Sheet

  • Product Resources

  • Specifications

    Hafele 405.82.216, 405-82-216, 40582216, 405.82

    Specifications/Hafele Catalog - Page# FC7.27:
    Click to: Show catalog here ...
    Click to: Show catalog in a new page.
    Return to: Hafele Sliding & Roller Shutters Catalog
    Return to: All Hafele Catalogs
    Download
    Adobe PDF Reader


  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

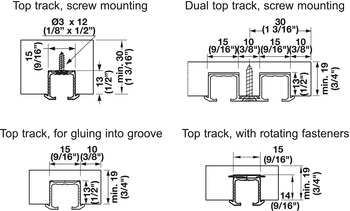

    Single Top Track, Hawa Clipo (choose one):


    Single Top Track, Hawa Clipo (choose one):
    • Pre-drilled for Screw-mounting, Aluminum, 8' 2 7/16"
      Pre-drilled for Screw-mounting, Aluminum, Aluminum, 11' 5 3/16"      		405.87.082
      405.87.083      		Click to order
      Click to order


    Single running track, Hawa Clipo (choose one):
    • Mounts with Rotating Fasteners, Aluminum, 8' 2 7/16"
      Not suitable for hardwood and MDF, Aluminum, 11' 5 3/16"      		405.87.092
      405.87.093      		Click to order
      Click to order


    Double running track, Hawa Clipo 16 H Mixslide (choose one):
    • for Hawa Clipo, silver colored anodized, length: 2,500 mm, aluminum405.90.942Click to order


    Double running track, top, for screw fixing (choose one):


    Optional Accessories:

    • Service Port, Hawa Clipo
    • Service Port, Hawa Clipo
    • Soft Close Mechanism, Hawa Clipo IF
