Hafele 405.82.220 Sliding Door Hardware, EKU Clipo 16 HM Inslide, Set For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.82.220

  Product Title: Sliding Door Hardware, Hawa Clipo 16 HM IF, set, For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door

  Category: Sliding Door Hardware, Hawa Clipo 16 HM IF, set, For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door

  Item Details …

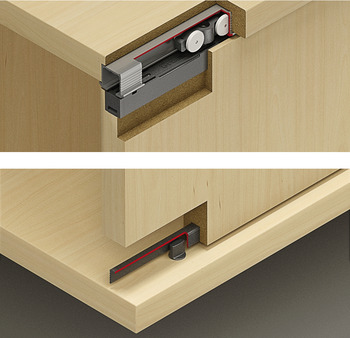

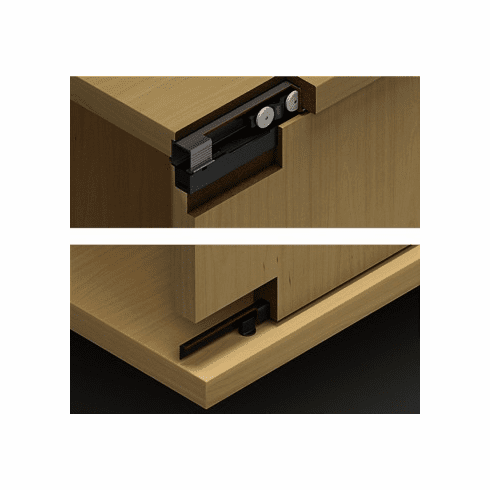

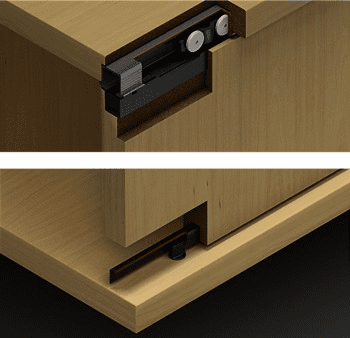

  - Ideal for serving hatches and narrow wooden frame doors

  - with soft closing mechanism (optional)

  - Number of doors : 1.00

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : ?19 mm

  - For door width : ?1,000 mm

  - For door weight : ?16 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : -1?–?2 mm

  - Running gear guided by : Friction bearing

  - For door material : aluminium frame

  - For door thickness max. : 3/4"

  - Door width max. : 39 3/8"

  - Door weight max. : 35 lbs.

  - Height adjustment : 1/8"

  - Height adjustable :

  - Door height min. : 55 1/8"

  - Cabinet version : with narrow doors

  - Set : Set without tracks

  - Area of application : For 1 door

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper, for sliding into running track

  - Material/finish : PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: -1?–?2 mm, Height +2/-1 mm

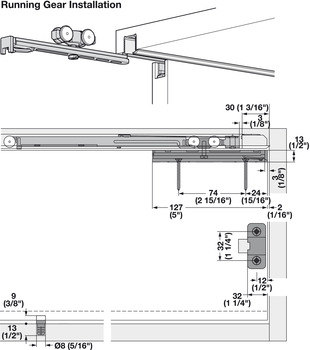

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Type of opening : linear

  - Number of doors per system max. : 1 to 2

  - Order reference

  - Please order running and guide tracks separately.

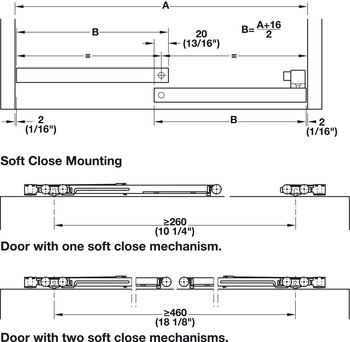

  - Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism separately.

  - Supplied with:

  - 2 Running gears

  - 2 housing unites

  - 2 track stoppers

  - 1 floor guides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Clipo 16 HM IF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.33



• Specifications

  Hafele 405.82.220, 405-82-220, 40582220, 405.82


  Specifications/Hafele Catalog - Page# FC7.35: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

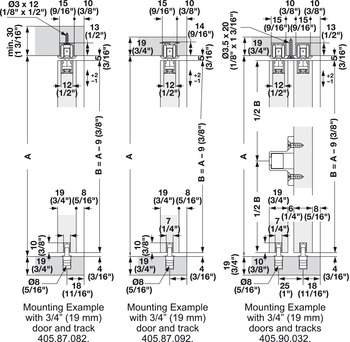

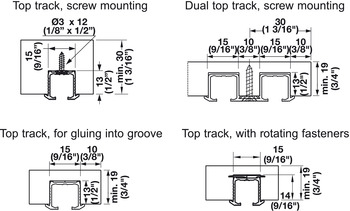

  Single Top Track, Hawa Clipo (choose one):


  • for Hawa Clipo, Aluminum, 8' 2 7/16"

    405.87.042

    Click to order



  Single Top Track, Hawa Clipo (choose one):


  • Pre-drilled for Screw-mounting, Aluminum, 8' 2 7/16" Pre-drilled for Screw-mounting, Aluminum, Aluminum, 11' 5 3/16"

    405.87.082 405.87.083

    Click to order Click to order



  Single running track, Hawa Clipo (choose one):


  • Mounts with Rotating Fasteners, Aluminum, 8' 2 7/16" Not suitable for hardwood and MDF, Aluminum, 11' 5 3/16"

    405.87.092 405.87.093

    Click to order Click to order



  Double running track, Hawa Clipo 16 H Mixslide (choose one):


  • for Hawa Clipo, silver colored anodized, length: 2,500 mm, aluminum

    405.90.942

    Click to order



  Double running track, top, for screw fixing (choose one):


  • for Hawa Clipo, Aluminum, 8' 2 7/16" for Hawa Clipo, Aluminum, 11' 5 3/16"

    405.90.032 405.90.033

    Click to order Click to order



  Optional Accessories:



  • Service Port, Hawa Clipo
  • Service Port, Hawa Clipo
  • Soft Close Mechanism, Hawa Clipo IF
