Hafele 405.82.228 Sliding Door Hardware, EKU Clipo 16 GS IS, Set For top running mirror doors, for door weights up to 35 lbs, For 2 doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.82.228

  Product Title: Sliding Door Hardware, Hawa Clipo 16 GS IF, set, For top running mirror doors, for door weights up to 35 lbs, For 2 doors

  Category: Sliding Door Hardware, Hawa Clipo 16 GS IF, set, For top running mirror doors, for door weights up to 35 lbs, For 2 doors

  Item Details …

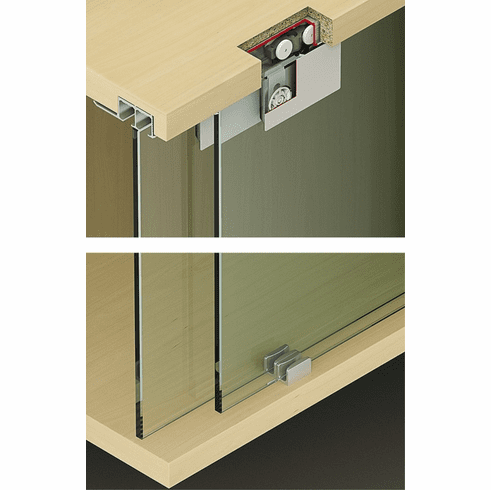

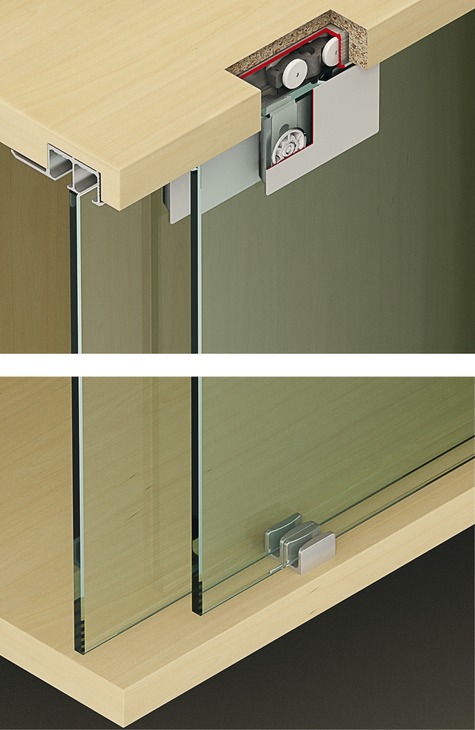

  - For bypassing, frameless glass doors

  - Top hung system allows for no track or groove to be placed in the bottom of the cabinet

  - Optional soft closing available to prevent door slam

  - Number of doors : 2.00

  - Soft closing mechanism : with clip-in door stopper

  - For glass thickness : 6 mm

  - For door width : ?1,000 mm

  - For door weight : ?16 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : -1?–?2 mm

  - Running gear guided by : Friction bearing

  - For door material : glass

  - Door width max. : 39 3/8"

  - Height adjustable :

  - Door height min. : 55 1/8"

  - Cabinet version : with top running glass doors

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper, for sliding into single running track

  - Material/finish : PlasticZinc alloyRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: -1?–?2 mm, Height +2/-1 mm

  - Installation : Screw-on guide, Running gear without tools (quick fixing system)

  - Door processing : With glass preparation

  - Installation reference : Note the conical design of the drill hole in the glass

  - Type of opening : linear

  - Number of doors per system max. : 2

  - Order reference

  - Please order running and guide tracks separately.

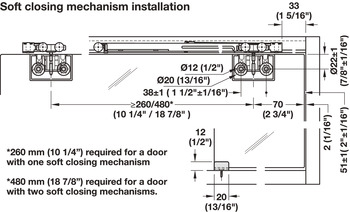

  - Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

  - Supplied with:

  - 4 running gears

  - 2 door stoppers with clip-in door stopper

  - 4 covers for glue fixing

  - 8 counterpieces for glass

  - 2 floor guides

  - 1 door follower
