Hafele 407.32.906 Lateral Swing Fitting, Pegaso 20 Set, for One Door For swing-out doors up to 44 lbs., Min. cabinet width 398 mm, opening path 475 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 407.32.906

  Product Title: Lateral Swing Fitting, Swingfront 20 FB, for wooden or narrow aluminum frame doors, For swing-out doors up to 44 lbs., Min. cabinet width 398 mm, opening path 475 mm

  Category: Lateral Swing Fitting, Swingfront 20 FB, for wooden or narrow aluminum frame doors, For swing-out doors up to 44 lbs.

  Item Details …

  - Adjustment options: ±4 mm (5/32") vertical, ±2 mm (3/32") horizontal and on the incline

  - Use in straight cabinets or in corner solutions

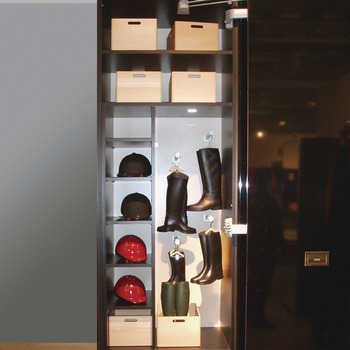

  - Door swings out to the front and to the side when being opened, allowing unlimited access to the cabinet interior

  - Version : with soft closing mechanism

  - Door weight max. : 20.00 kg

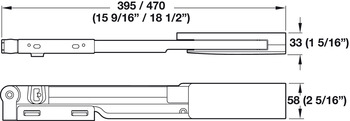

  - Internal cabinet width : Min. 15 11/16" or 18 11/16"

  - Door weight min. : Max. 44 lbs

  - Material : Zinc alloy

  - Color/finish : Silver colored, powder coated

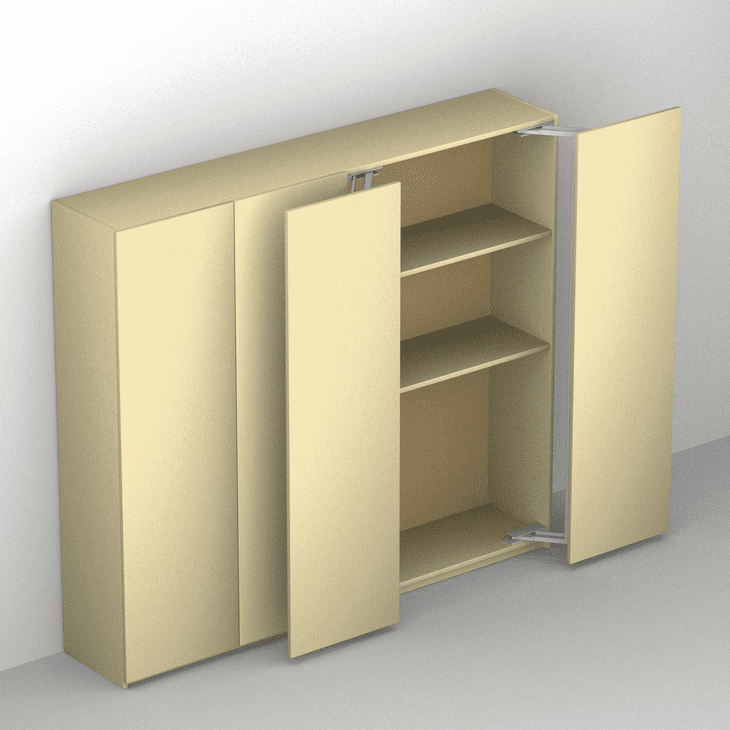

  - Area of application : Can be used for single doors, double doors with straight cabinet design and for corner solutions

  - Internal cabinet height : 2,576.00 mm

  - Internal cabinet height : Max. 8' 5 7/16"

  - Adjustment facility : Tilting angle, Vertical, Horizontal

  - Order reference

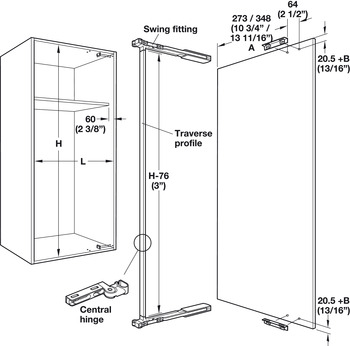

  - Please order connecting bar and center hinge separately.

  - Supplied with:

  - 1 Pair of door opening mechanisms

  - 2 Door mounting brackets


  Additional Information …

  If the door is opening to the left, install your handle on the left half of the door. If the door is opening to the right, install your handle on the right half of the door.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Pegaso Swing Opening Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.107



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.92-7.92.pdf

  Hafele 407.32.906, 407-32-906, 40732906, 407.32


  Specifications/Hafele Catalog - Page# FC7.150: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Traverse Profile, Swingfront 20 FB
  • Central Hinge, for Swingfront 20 FB
  • Cabinet fixing set, for 20 FB door opening mechanism
