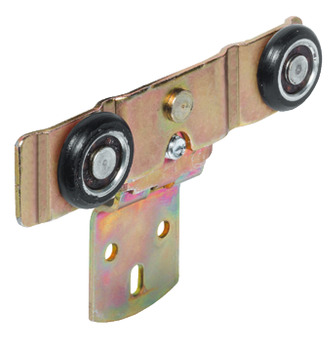

Hafele 407.14.903 Double Running Gear, For Hangar Infront For Top Hung, Wood Sliding Doors, for Weights up to 62 lbs, for One or Two Doors, 2 Rollers; 62 lbs Weight Capacity

Product Information

• Description

  Manufacturer: Hafele
  Item: 407.14.903

  Product Title: Double Running Gear, For Hangar Infront, For Top Hung, Wood Sliding Doors, for Weights up to 62 lbs, for One or Two Doors, 2 Rollers; 62 lbs Weight Capacity

  Category: ,

  Item Details …

  - Smoother operation

  - Simple adjustment

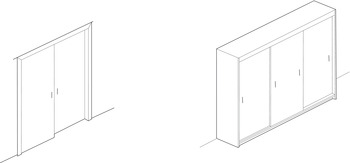

  - Area of application : For single & bypassing sliding wood doors

  - Material : Steel

  - Running gear guided by : Ball bearing

  - Running position : Top

  - Width : 96.00 mm

  - Height : 63.00 mm

  - Installation : For screw mounting

  - Supplied with:

  - Mounting plate for lateral attachment

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.52-7.53.pdf

  Hafele 407.14.903, 407-14-903, 40714903, 407.14


  Specifications/Hafele Catalog - Page# FC7.17: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Double Upper Track, For Hangar Infront (choose one):


  • Aluminum; Pre-drilled for Screw Mounting, Double; 8' 2 7/16" Aluminum; Pre-drilled for Screw Mounting, Double; 11' 5 13/16"

    407.11.012 407.11.013

    Click to order Click to order



  Optional Accessories:



  • Single Running Gear, For Hangar Infront
  • Lower Guide, For One Door
  • Double Guide, for screw fixing, 2-piece
  • Door Follower, Prevents collision of handle profiles when pushing back the doors
  • Wall Buffer, For Hangar Infront
