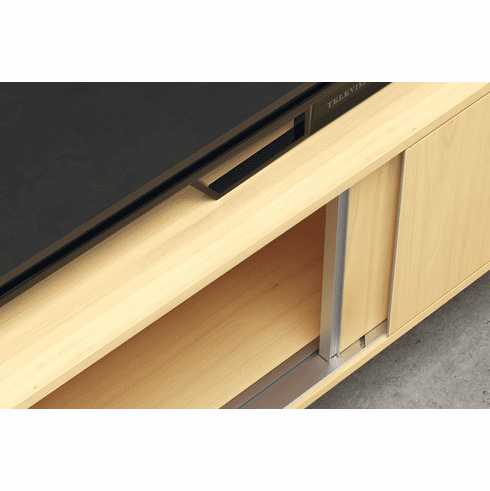

Hafele 407.40.090 Slido F-Line19 20A, cab width 1808, door width 900, aluminum, silver anodized

Product Information

• Description

  Manufacturer: Hafele
  Item: 407.40.090

  Product Title: Sliding Door Hardware, Häfele Slido F-Flush52 20A, for base unit/sideboard with 2 symmetrical wooden doors, flush, inset door, door weight up to 20 kg, door height up to 1,600 mm, Silver colored anodized, For internal cabinet width 1808 mm

  Category: Sliding Door Hardware, Häfele Slido F-Flush52 20A, for base unit/sideboard with 2 symmetrical wooden doors, flush, inset door, door weight up to 20 kg, door height up to 1,600 mm

  Item Details …

  - Exclusive: For flush, inside running doors

  - For door thickness : 18?–?22 mm

  - For door weight : ?20 kg

  - Note on door thickness : 7/8" - 23/32"

  - Door width max. : 7/8"

  - Length (inch) : 2' 1 19/32"

  - Note on door weight : ? 44 lbs

  - For door height : ?1,600 mm

  - Note on door height : 63"

  - Material/finish : Silver colored

  - Adjustment facility : ±2 mm (±1/16")

  - Door adjustment via : Knurled nut (without tools)

  - Installation depth, bottom : 70.00 mm

  - Installation : Running gear for screw fixing

  - Door processing : With recess

  - Installation reference : A center panel is mandatory.

  - Number of doors per system max. : 2

  - Order reference

  - Please order optional handle profiles for high-quality appearance and easy processing separately.

  - Supplied with:

  - 2 running tracks

  - 4 running gears, bottom

  - 4 guide parts, top

  - Spacer plates for door thickness 18 and 20 mm


  Additional Information …

  A center panel is mandatory.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Flush52 20A Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.58
