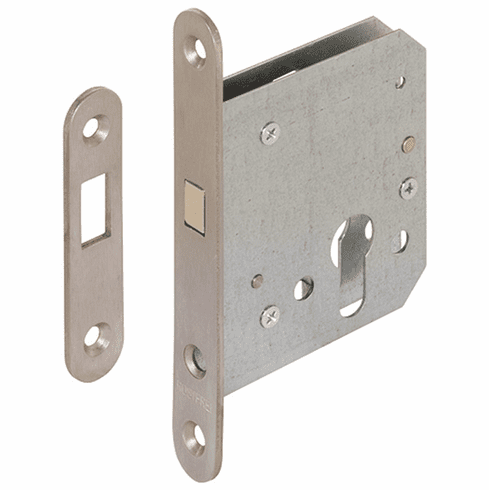

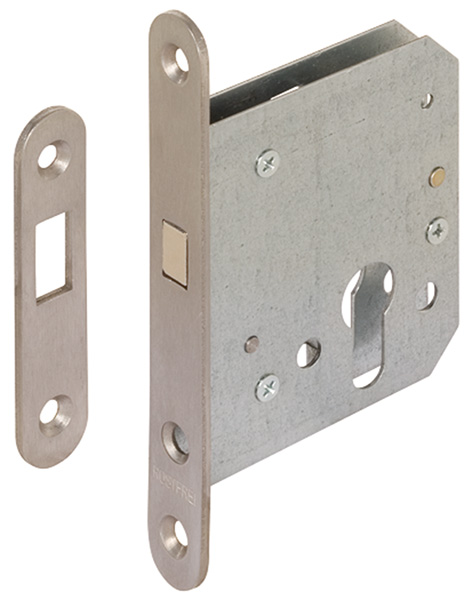

Hafele 911.26.330 Mortise lock, For sliding doors, with compass bolt, profile cylinder, backset 55 mm Forend width 20 mm, for residential areas, Steel plates

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.330

  Product Title: Mortise lock, Entrance Function, For sliding doors, with compass bolt, profile cylinder, backset 55 mm, Forend width 20 mm, for residential areas, Steel plates

  Category: Mortise lock, Entrance Function, For sliding doors, with compass bolt, profile cylinder, backset 55 mm, Forend width 20 mm, for residential areas, Steel plates

  Item Details …

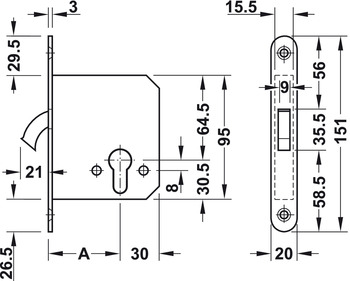

  - Lock type : PC

  - Backset (mm) : 55.00 mm

  - Backset (mm) : A= 2 11/64"

  - Forend design : Flat forend rounded

  - Forend width : 20.00 mm

  - Material : Lock face plate and strike plate: Stainless Steel Compass bolt: Zinc; Lock case; Steel

  - Forend material/finish : Forend and striking plate: Satin stainless steel

  - For door thickness min. : 1 3/4"

  - Area of application : Residential areas

  - Application : Sliding doors

  - For door material : wood

  - Color/finish : Lock face plate and strike plate: Matt; Compass bolt: Polished Nickel; Lock case: Lacquered

  - Forend length : 151.00 mm

  - Deadbolt version : Circle deadbolt

  - Supplied with:

  - 1 mortice lock

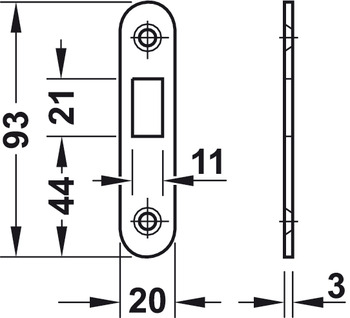

  - 1 striking plate
