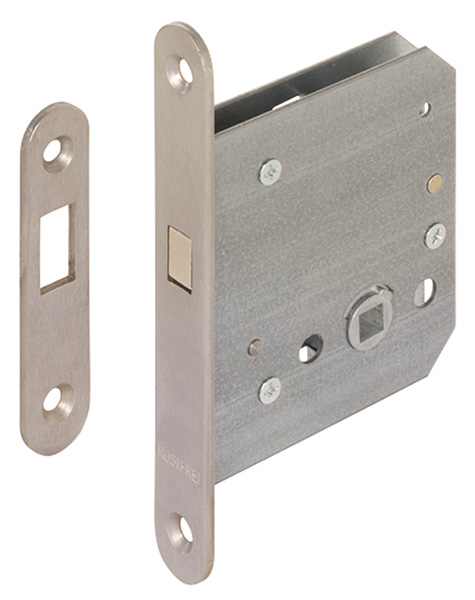

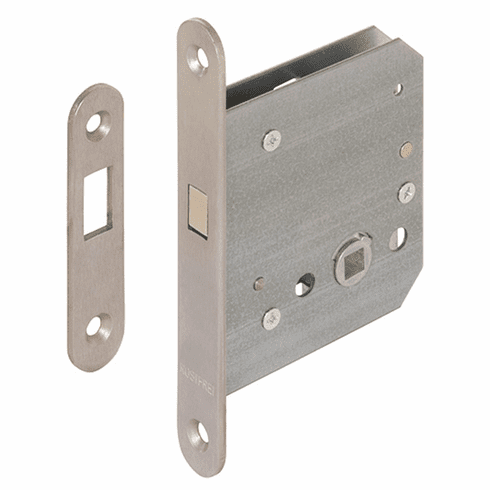

Hafele 911.26.340 Mortise Lock, Passage Function For wood doors, Steel plates

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.340

  Product Title: Mortise lock, for sliding doors, with compass bolt, Startec, bathroom/WC, For wood doors, Steel plates

  Category: Mortise lock, for sliding doors, with compass bolt, Startec, bathroom/WC, For wood doors, Steel plates

  Item Details …

  - Lock type : WC/Bathroom

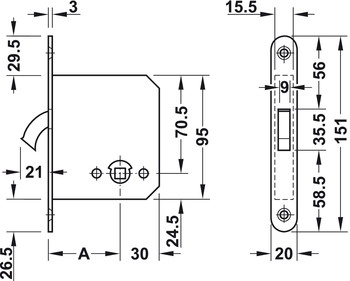

  - Backset (mm) : 55.00 mm

  - Backset (mm) : A= 2 11/64"

  - Forend design : Flat forend rounded

  - Forend width : 20.00 mm

  - Material : Lock face plate and strike plate: Stainless steel; Compass bolt: Zinc; Lock case: Steel; Bolt follower: Zinc die-cast

  - Forend material/finish : Forend and striking plate: Satin stainless steel

  - For door thickness min. : 1 3/4"

  - Spindle : Square, 5/16"

  - Area of application : Residential areas

  - Application : Sliding doors

  - For door material : wood

  - Color/finish : Lock and plate and strike plate: Matt; Compass bolt: Polished Nickel, Lock case: Lacquered,; Bolt follower: Zinc die-cast

  - Forend length : 151.00 mm

  - Deadbolt version : Circle deadbolt

  - Supplied with:

  - 1 mortice lock

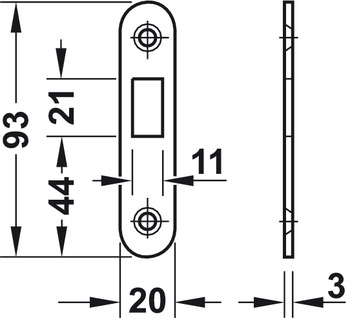

  - 1 striking plate

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.394



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.368-1.370.pdf

  Hafele 911.26.340 Mortise Lock, stainless steel, 55/20mm


  • Hardware > Locks & Keys
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 911.26.340
  • Condition: new
