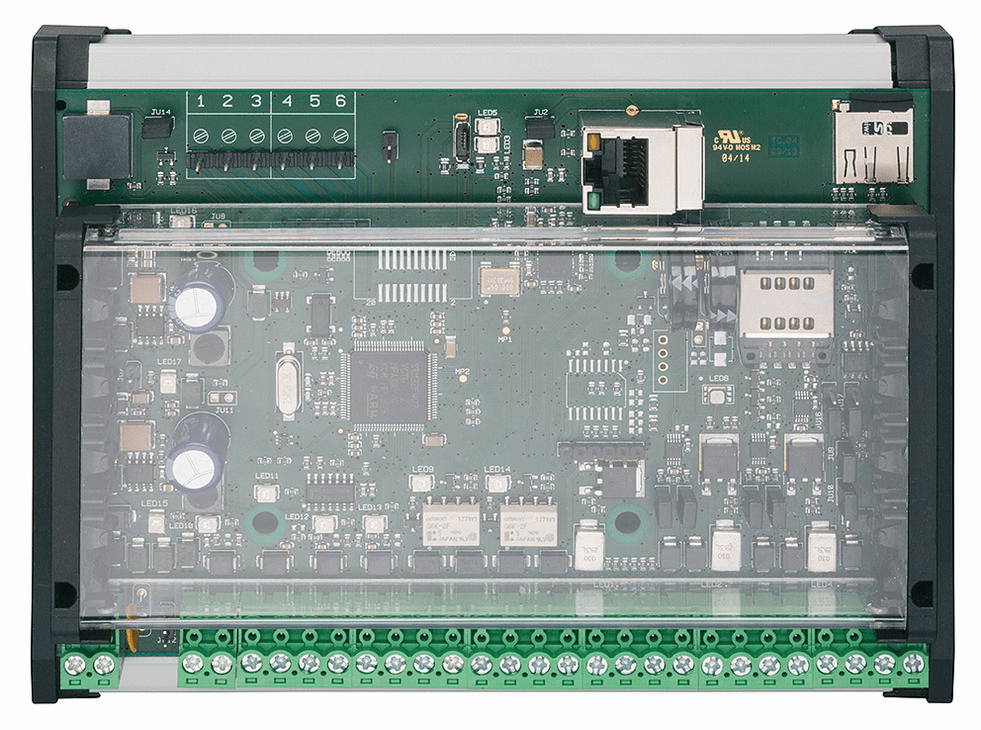

Hafele 917.91.071 Controller, WTC 200, Dialock, for indoor or outdoor use

Product Information

• Description

  Manufacturer: Hafele
  Item: 917.91.071

  Product Title: Controller, WTC 200, Dialock, for indoor or outdoor use, ,

  Category: Controller, WTC 200, Dialock, for indoor or outdoor use, ,

  Item Details …

  - Product type : Controller

  - Suitable for : for combination with WRU 200 and WRU 220 wall reader

  - Transponder technology : Tag-it™-ISO®, MIFARE® DESFire® EV2, MIFARE Classic® EV1

  - Material : Plastic

  - Functionality : Mains-operated, intelligent controller for online operationUse as authorisation writer and/or wall terminal, block lock functionSelective actuation of up to 2 electrical devicesPlug & Play installation, creation of all system parameters on an SD card by the softwareAuthorisation writer for updating the authorisations at offline terminalsDisplay of operating statuses in the Dialock 2.0 softwareJust-in-time change of authorisationsWith integrated real-time clock for programming time-restricted locking rights (setting of time zones)With logging of all proceduresWith 4 inputs for evaluating input signals (e.g. reed contact for door monitoring). In combination with an electric strike or mortice lock with feedback contact, this allows visual overall monitoring of the status of, for example, the master key systemConfiguration modifications and online firmware update with the Dialock 2.0 software

  - Version : CPU: 32 bit 168 MHz Cortex M4with slot for WTX 200 I/O expansionStorage media: 1 x Micro SD card (optionally encrypted with 128 bit SSL), 512 kB Flash, 128 KB S-RAM

  - Installation reference : Connection between WRU 200/WRU 220 and WTC 200 electronic control unit with 4-core installation cable in accordance with VDE 0815: Type J-Y (St) Y 2 x 2 x 0.8 mm (twisted pair, shielded), max. length 100 m, please contact a Dialock specialist if deviating from this.

  - Order reference

  - Please order separately:

  - WTX 200 module I/O expansion with 3 relay outputs and 4 analogue input ports

  - 8-way relay module with 8 relay outputs and 1 analogue input port

  - Please order supplementary and optional components such as energy control terminals, voltage supplies and voltage locks separately.


  Additional Information …

  Degree of protection IP 30 when installed in sheet steel housing.When installed on a top hat rail: depends on the housing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for WT 200

  Declaration of conformity German / English
