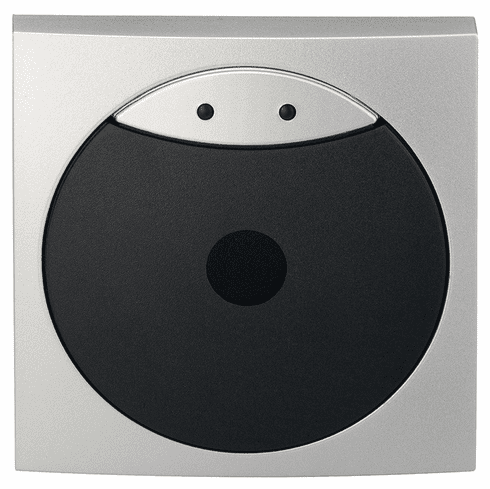

Hafele 917.91.072 Wall reader, WRU 200, Dialock, for indoor or outdoor use

Product Information

• Description

  Manufacturer: Hafele
  Item: 917.91.072

  Product Title: Wall reader, WRU 200, Dialock, for indoor or outdoor use, Mains operated

  Category: Wall reader, WRU 200, Dialock, for indoor or outdoor use, Mains operated

  Item Details …

  - Product type : Wall reader

  - Color/finish : Anthracite coloredSilver colored

  - Area of application : for outdoor and indoor usefor combination with WTC 200 controller

  - Transponder technology : Tag-it™-ISO®, MIFARE® DESFire® EV2, MIFARE Classic® EV1

  - Material : Plastic

  - Functionality : mains-operated wall reader, contactless activation with Dialock key- Red/green LEDs for indicating unlocking and locking- for service personnel: Indication of the operating status (e.g. offline)

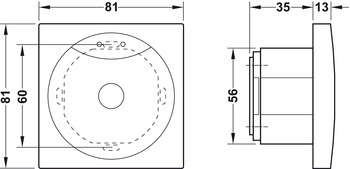

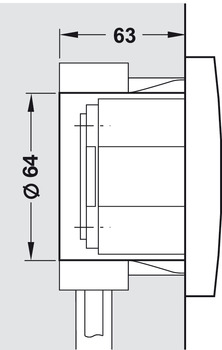

  - Installation reference : Notes on operation and installationConnection between WRU 200 wall reader and WTC 200 controller with 4-core installation cable in accordance with VDE 0815: Type J-Y (St) Y 2 x 2 x 0.8 mm (twisted pair, shielded), maximum length 100 m, please contact a Dialock specialist iif deviating from this.Installation of wall reader in flush-mount socket with 2 device fastening screws (60 mm in accordance with DIN).Ensure horizontal screw points.Minimum distance between 2 wall readers 250 mm.Installing the wall reader in a metal environment requires planning.

  - Order reference

  - > WTX 200 I/O expansion module with 3 relay output ports and 4 analog input ports

  - > 8-way relay module with 8 relay output ports and 1 analog input port

  - Supplied with:

  - WRU 200 Wall reader

  - WTC 200 Controller

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for WT 200

  Declaration of conformity German / English

  TCH_Architectural_Hardware_2022|Page 5.16
