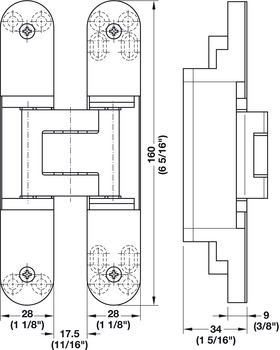

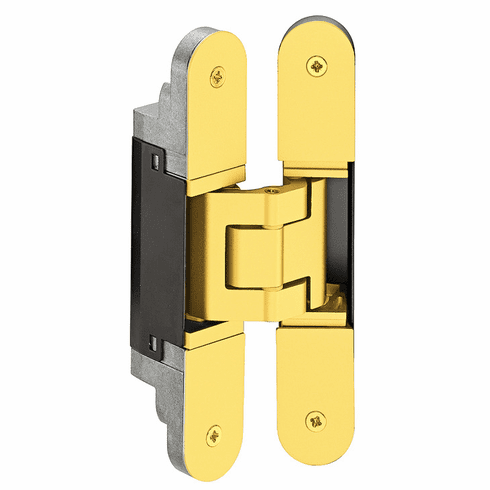

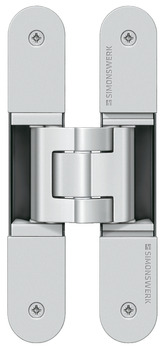

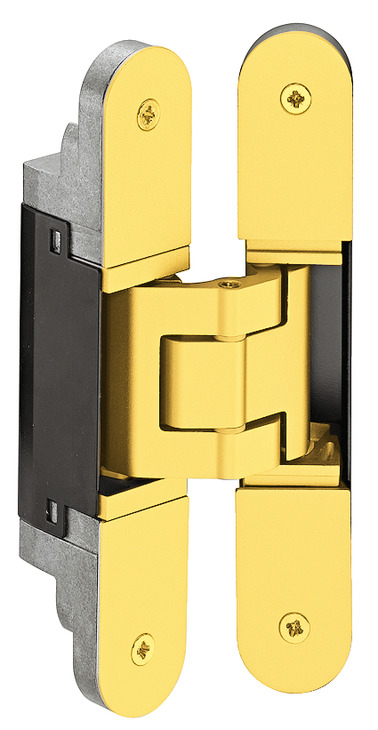

Hafele 924.17.169 Concealed Hinge, TECTUS TE 340 3D 3D adjustable, size 160 mm, Polished brass

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.17.169

  Product Title: Concealed Hinge, TECTUS TE 340 3D, 3D adjustable, size 160 mm, Polished brass

  Category: Concealed Hinge, TECTUS TE 340 3D, 3D adjustable, size 160 mm

  Item Details …

  - Maintenance-free slide bearings

  - UL = 60 minutes

  - Mounting : For DIN left and DIN right hand use

  - Material : Aluminum, Steel

  - Door weight max. : 176 lbs

  - Door thickness min. : 1 1/2"

  - Model series : TE 340 3D

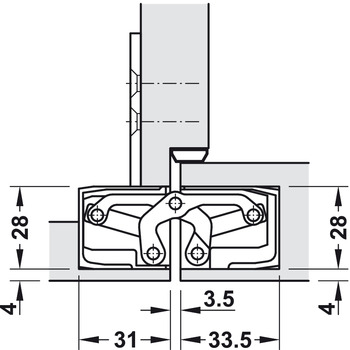

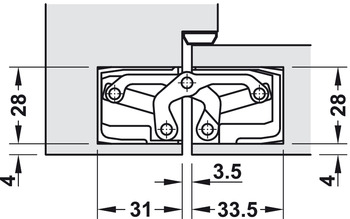

  - Area of application : Used in door frames made out of hollow metal or wood for flush doors

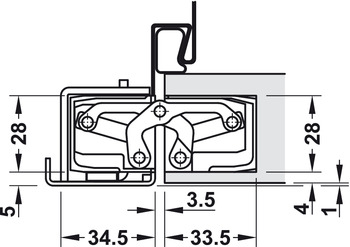

  - For frame type : Metal frame, Aluminium frame, For wooden frame

  - Max. door weight for 2 hinges : 80.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?38 mm

  - Router bit Ø : 24.00 mm

  - Router bit Ø : 15/16”; Guide: 1 3/16"

  - Bearing type : Friction bearing, maintenance-free

  - Adjustment facility : Continuous3-dimensional, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 3|7|4|1|1|3|0|11


  Additional Information …

  “Energy” version also available (optional). Permanent energy transmission from the frame into the door leaf is therefore possible without additional cable transition.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 4.43



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
  • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
  • Routing Template, for Tectus TE
  • Mounting Plate, For Simonswerk TECTUS TE 340 3D FZ/1 concealed mortice hinge
