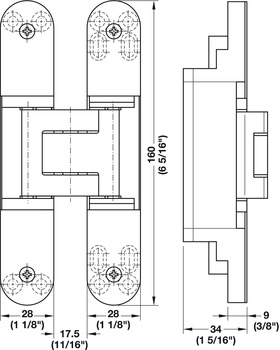

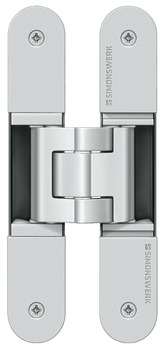

Hafele 924.17.170 Concealed Hinge, TECTUS TE 340 3D 3D adjustable, size 160 mm, Polished nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.17.170

  Product Title: Concealed Hinge, TECTUS TE 340 3D, 3D adjustable, size 160 mm, Polished nickel

  Category: Concealed Hinge, TECTUS TE 340 3D, 3D adjustable, size 160 mm

  Item Details …

  - Maintenance-free slide bearings

  - UL = 60 minutes

  - Mounting : For DIN left and DIN right hand use

  - Material : Aluminum, Steel

  - Door weight max. : 176 lbs

  - Door thickness min. : 1 1/2"

  - Model series : TE 340 3D

  - Area of application : Used in door frames made out of hollow metal or wood for flush doors

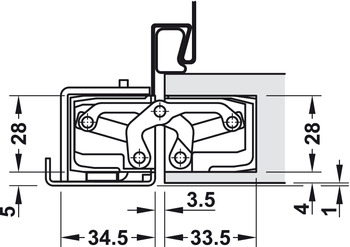

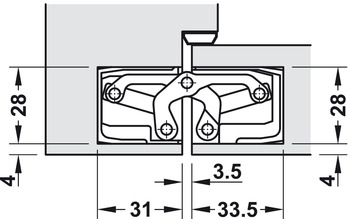

  - For frame type : Metal frame, Aluminium frame, For wooden frame

  - Max. door weight for 2 hinges : 80.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?38 mm

  - Router bit Ø : 24.00 mm

  - Router bit Ø : 15/16”; Guide: 1 3/16"

  - Bearing type : Friction bearing, maintenance-free

  - Adjustment facility : Continuous3-dimensional, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 3|7|4|1|1|3|0|11


  Additional Information …

  “Energy” version also available (optional). Permanent energy transmission from the frame into the door leaf is therefore possible without additional cable transition.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 4.43



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
  • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
  • Routing Template, for Tectus TE
  • Mounting Plate, For Simonswerk TECTUS TE 340 3D FZ/1 concealed mortice hinge
