Hafele 940.42.071 Slido Classic Impact Dampener, dark gray, 40 - 80 kg (88 - 176 lbs.)

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.42.071

  Product Title: Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I, for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings, Door weight: 80 kg (176 lbs)

  Category: Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I, for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings

  Item Details …

  - For Slido Classic 40-P to 120-P and 40-O to 120-O sliding door fittings

  - Replaces the pocket door edge pull; simply press on the edge of the sliding door and the spring of the impact dampener will push the sliding door far enough out so you can reach the flush pulls

  - The impact dampener is simply inserted on one end of the upper track and fixed in place with a set screw

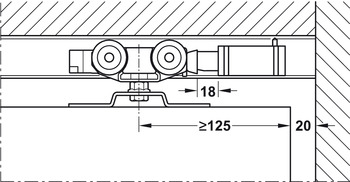

  - For proper function of the impact dampener, a clearance of 20mm (25/32”) between the edge of the door and the structure must be provided

  - Product type : Track Stopper

  - Equipped with :

  - Area of application : for wooden and glass sliding doors

  - Suitable for : Häfele Slido D-Line11 P, D-Line11 C , D-Line11 I, D-Line11 J, D-Line11 L

  - Functionality : The Push-to-Open soft closing mechanism replaces the sprung handle with sliding doors that run in walls.The door bounces out of the cavity after tapping it slightly so that the handle (depending on the mounting position) can be reached.With the version with the track stopper with magnetic retention, the door is also held in the open position.

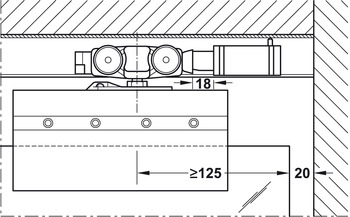

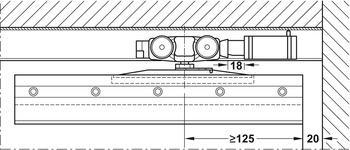

  - Installation : The Push-to-Open track stopper is inserted into the running track from the front edge and fixed with the fixing screw.A wall distance of min. 20 mm must be provided in order to ensure the functionality of the soft closing mechanism.


  Additional Information …

  Not suitable for use in combination with soft and self closing mechanism.Plan cut-out dimensions for glass preparation accordingly

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.247

  TCH_Architectural_Hardware_2022|Page 1.30



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.16-1.21.pdf

  Hafele 940.42.071 Slido Classic Impact Dampener, dark gray, 40 - 80 kg


  • Hardware
  • Trade Discount (15% OFF Coupon),The Complete Hafele,hafele-misc
  • Brand: Hafele
  • Part#: 940.42.071
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Sliding Door Hardware, Slido D-Line11 50P to 120P, set without running track
  • Sliding Door Hardware, Häfele Slido Classic 40-I / 80-I / 120-I, set without running track for 1 door leaf
  • Sliding Door Hardware, Slido D-Line11 50C to 120C, set without running track
