Hafele 940.42.072 Slido Classic Impact Dampener, black, 80 - 120 kg (176 - 264 lbs.)

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.42.072

  Product Title: Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I, for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings, Door weight: 120 kg (264 lbs)

  Category: Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I, for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings

  Item Details …

  - For Slido Classic 40-P to 120-P and 40-O to 120-O sliding door fittings

  - Replaces the pocket door edge pull; simply press on the edge of the sliding door and the spring of the impact dampener will push the sliding door far enough out so you can reach the flush pulls

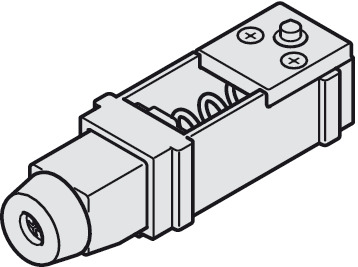

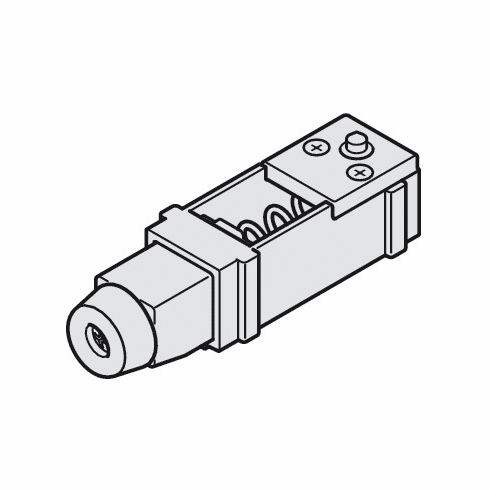

  - The impact dampener is simply inserted on one end of the upper track and fixed in place with a set screw

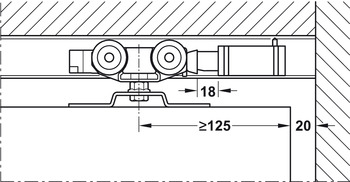

  - For proper function of the impact dampener, a clearance of 20mm (25/32”) between the edge of the door and the structure must be provided

  - Product type : Track Stopper

  - Equipped with :

  - Area of application : for wooden and glass sliding doors

  - Suitable for : Häfele Slido D-Line11 P, D-Line11 C , D-Line11 I, D-Line11 J, D-Line11 L

  - Functionality : The Push-to-Open soft closing mechanism replaces the sprung handle with sliding doors that run in walls.The door bounces out of the cavity after tapping it slightly so that the handle (depending on the mounting position) can be reached.With the version with the track stopper with magnetic retention, the door is also held in the open position.

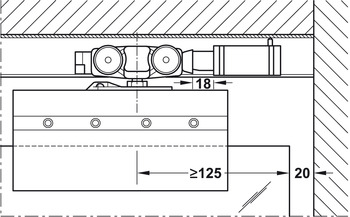

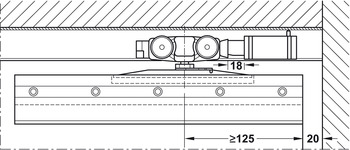

  - Installation : The Push-to-Open track stopper is inserted into the running track from the front edge and fixed with the fixing screw.A wall distance of min. 20 mm must be provided in order to ensure the functionality of the soft closing mechanism.


  Additional Information …

  Not suitable for use in combination with soft and self closing mechanism.Plan cut-out dimensions for glass preparation accordingly

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.247

  TCH_Architectural_Hardware_2022|Page 1.30



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.16-1.21.pdf

  Hafele 940.42.072 Slido Classic Impact Dampener, black, 80 - 120 kg (1


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,10-50
  • Brand: Hafele
  • Part#: 940.42.072
  • Condition: new
