Hafele 940.59.813 Slido Design 80-M Support Track, for soft floors, aluminum, black anodized, 3.6 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.59.813

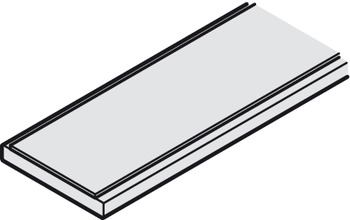

  Product Title: Bottom track, for soft floors, Slido Design 80-M, Black anodized, length: 3,600 mm

  Category: Bottom track, for soft floors, Slido Design 80-M

  Item Details …

  - Product type : Bottom track

  - For door width : 800?–?1,800 mm

  - Width : 30.00 mm

  - Width (inch) : 1 3/16"

  - Height : 5.00 mm

  - Height (inch) : 5/32"

  - Load bearing capacity : 176 lbs.

  - Area of application : For soft floors

  - Material : Aluminum

  - Position : bottom

  - For door weight : ?80 kg

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.13

  TCH_Architectural_Hardware_2022|Page 1.239



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.26-1.27.pdf
