Hafele 941.00.053 EKU Porta 100 GWF Fitting Set, black (1 kit), 94100053, 941-00-053Zoom

Hafele 941.00.053 EKU Porta 100 GWF Fitting Set, black

$708.45$885.56You Save: $177.11 (20%)
Item# Hafele-941.00.053
Availability: in stock (2 or less, Next ETA: 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.00.053

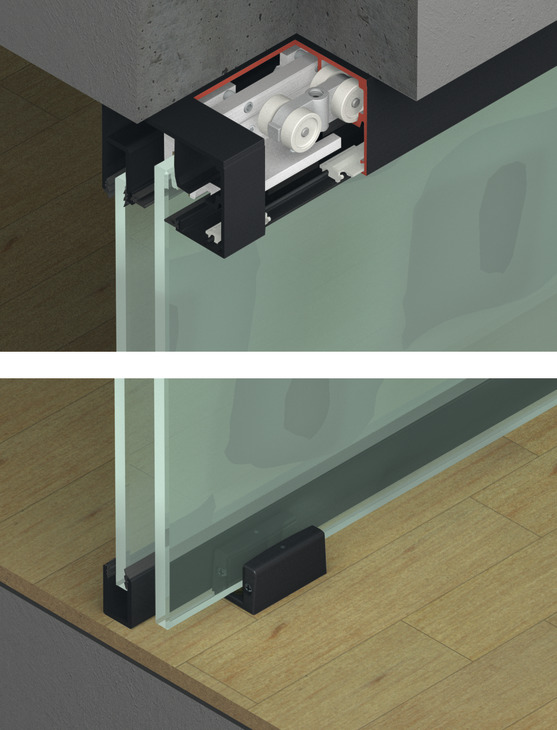

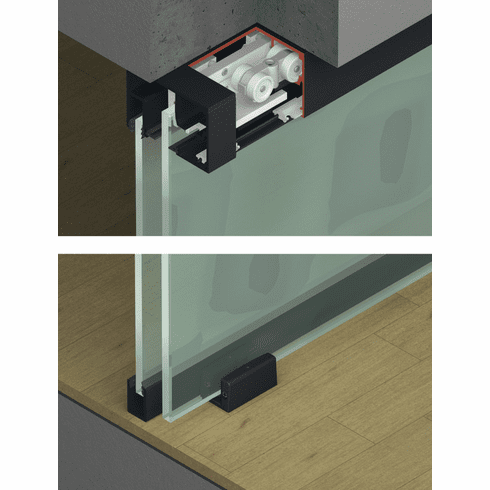

    Product Title: Sliding door fitting, Hawa Porta 100 GW/GWF, set, for 1-leaf glass sliding doors, surface mounted or flush fitted in ceiling, for door weight up to 100 kg, Black anodized

    Category: Sliding door fitting, Hawa Porta 100 GW/GWF, set, for 1-leaf glass sliding doors, surface mounted or flush fitted in ceiling, for door weight up to 100 kg

    Item Details …

    -     Number of doors per system max. : 1

    - Number of doors : 1.00

    - For door material : glass

    - Soft closing mechanism : with soft closing mechanism (optional)

    - For door weight : ?100 kg

    - For door width : ?1,600 mm

    - Controller installation options : Ceiling installation

    - For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm

    - Adjustment facility : Height adjustment: ±3 mm

    - Area of application : For 1-leaf and 2-leaf sliding doors

    - For door height : ?2,700 mm

    - For glass type : Tempered safety glass

    - Running position : Top

    - Door processing : With recess

    - Supplied with:

    - 2 running gears

    - 2 suspension screws M8 x 25

    - 2 clamping shoes

    - 2 track buffers (1 with retaining spring, 1 without retaining spring)

    - 1 wall buffer

    - 1 clear threshold floor guide

    - 12 panel clips

    - 1 set of fixing screws


    Additional Information …

    Soft and self closing mechanism (optional for Hawa Porta 100 GW/GWF)

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

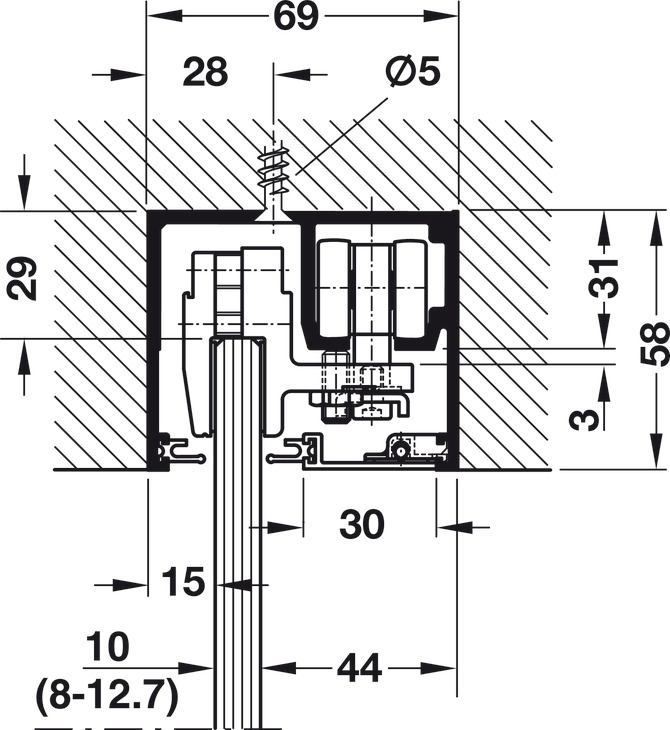

    Upper Track, Pre-drilled, (2 23/32 x 2 9/32") 69 x 58 mm (choose one):
    • for Hawa Porta 100 GW, Aluminum, length: 2.5 m (8' 2 7/16")
      for Hawa Porta 100 GW, Aluminum, length: 3.5 m (11' 5 25/32")
      for Hawa Porta 100 GW, Aluminum, length: 6 m (19’ 8 1/4”)      		941.00.425
      941.00.435
      941.00.460      		Click to order
      Click to order
      Click to order


    Guide Channel, Lower, Pre-drilled (choose one):
    • For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 2.5 m (8’ 2 7/16”)
      For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 3.5 m (11’ 5 13/16”)
      For Hawa Porta 100 GWF/GF/GFO, Anodized, length: 6 m (19’ 8 1/4”)
      For Hawa Porta 100 GWF/GF/GFO, Black anodized, length: 2.5 m (8’ 2 7/16”)
      For Hawa Porta 100 GWF/GF/GFO, Black anodized, length: 3.5 m (11’ 5 13/16”)      		941.01.725
      941.01.735
      941.01.760
      941.01.800
      941.01.801      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order

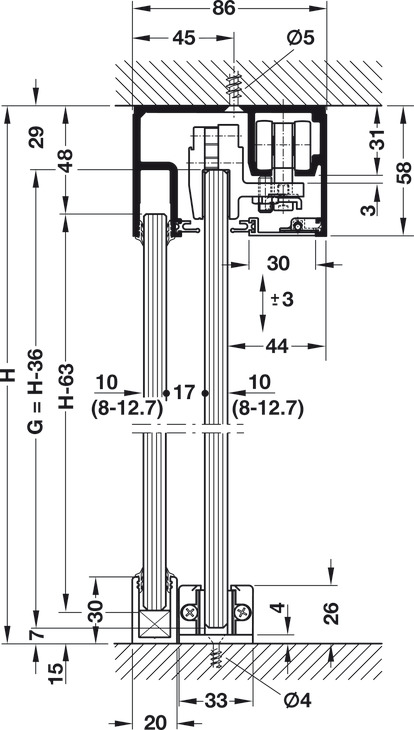

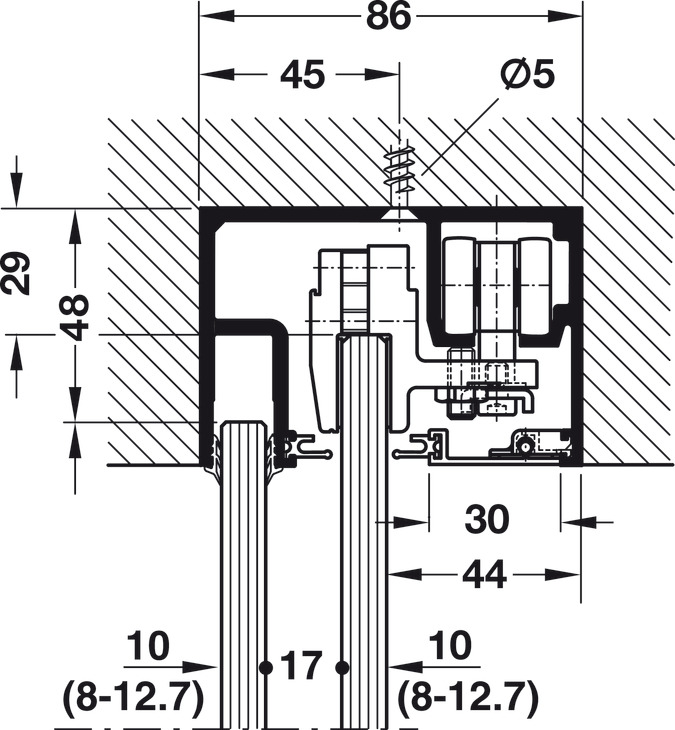

    Running track, With fixed glass fixing profile (choose one):
    • (3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 2.5 m (8’ 2 7/16”)
      (3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 3.5 m (11’ 5 13/16”)
      (3 3/8 x 2 9/32") 86 x 58 mm, clear anodized, length: 6 m (19’ 8 1/4”)
      (3 3/8 x 2 9/32") 86 x 58 mm, black anodized, length: 2.5 m (8’ 2 7/16”)
      (3 3/8 x 2 9/32") 86 x 58 mm, black anodized, length: 3.5 m (11’ 5 13/16”)      		941.00.256
      941.00.356
      941.00.606
      941.00.614
      941.00.615      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Optional Accessories:

    • End Cap Set, for Upper Track Only
    • Sliding door fitting, HAWA Porta 100 GW/GWF Synchro, set
    • Screw Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2 7/16")
    • End Cap Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2 7/16")
    • Wall Mounting Angle Profile, Pre-drilled
    • Seal, Black, Plastic
    • Clip-on Fascia, (1 3/16 x 21/34") 30 x 8 mm
    • Fixing Set, for Support Profile and Fixed Glazing Profile
    • Disposable Cover, For protecting the track e.g. during plastering work
    • Wall Profile, 15 x 14 mm (5/8 x 9/16")
    • Sealing Profile, for 8 and 10 mm (5/16” and 3/8”) Glass
    • Milling Jig, For Hawa Porta 100 GW/GWF
    • Glass Door Lock, Toplock for European Profile Cylinder
    • Fastening Bolts and Nuts, For Angle Profile, Junior 40

  • Brand PDF Catalogs
