Hafele 941.00.054 EKU Divido 100 H/HC Fitting Set, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.00.054

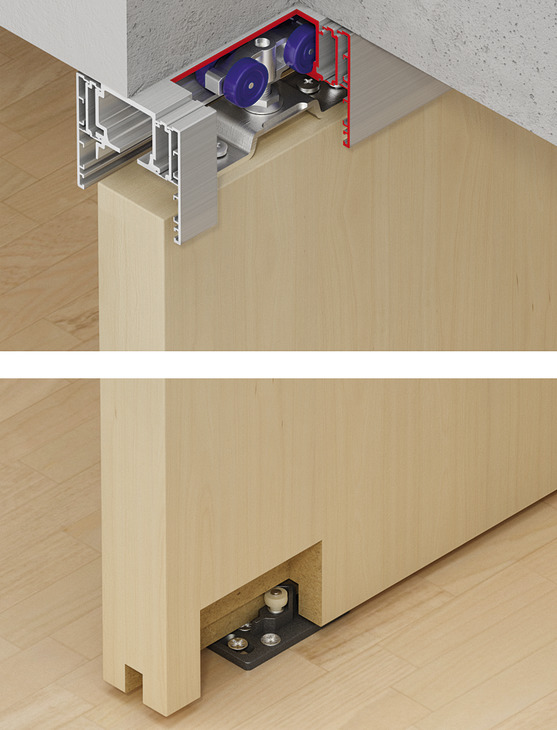

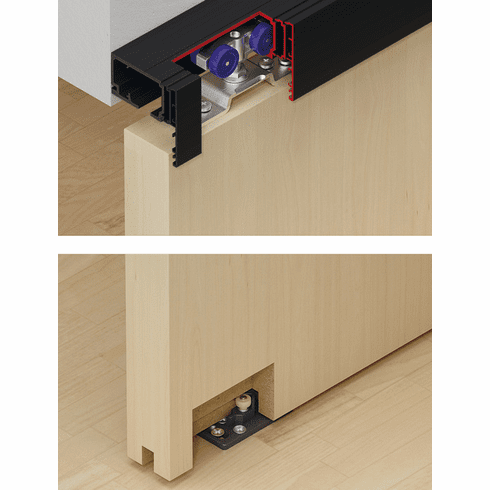

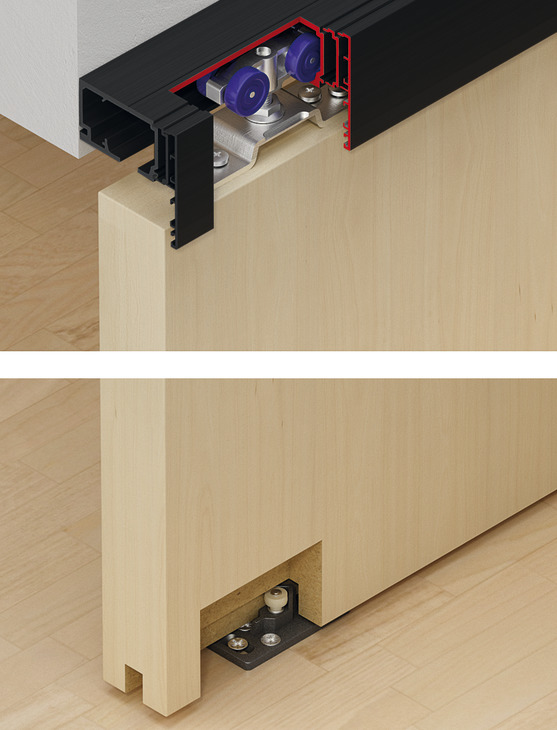

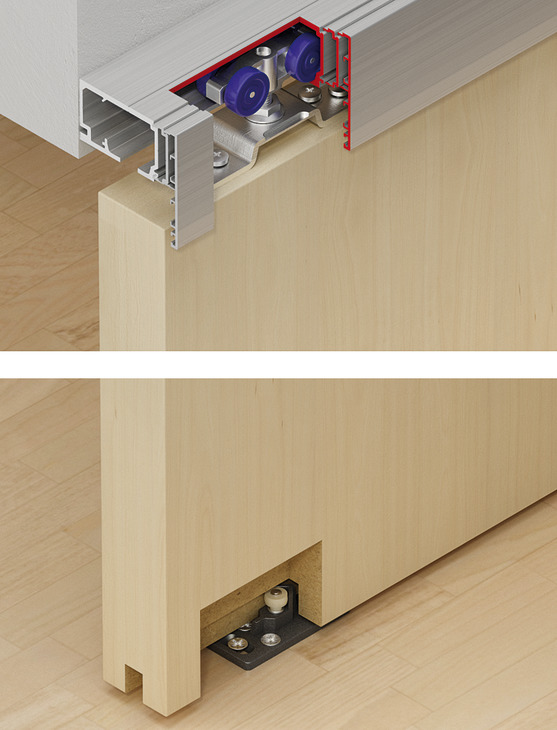

  Product Title: Sliding door fitting, Hawa Porta 60/100 HC Set, for 1 and 2-leaf wooden sliding doors, ceiling and wall installation, soft and self closing mechanism (optional), height adjustable doors, for door weights up to 60/100 kg, Door thickness 30-45 mm, Door weight ?100 kg, Black

  Category: Sliding door fitting, HAWA Porta 60/100 H/HC, set, for 1-leaf and 2-leaf wooden sliding doors, wall mounting, soft and self closing mechanism (optional), door height adjustable, for door weight up to 60/100 kg

  Item Details …

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Soft closing mechanism : with soft closing mechanism (optional)

  - For door width : ?1,600 mm

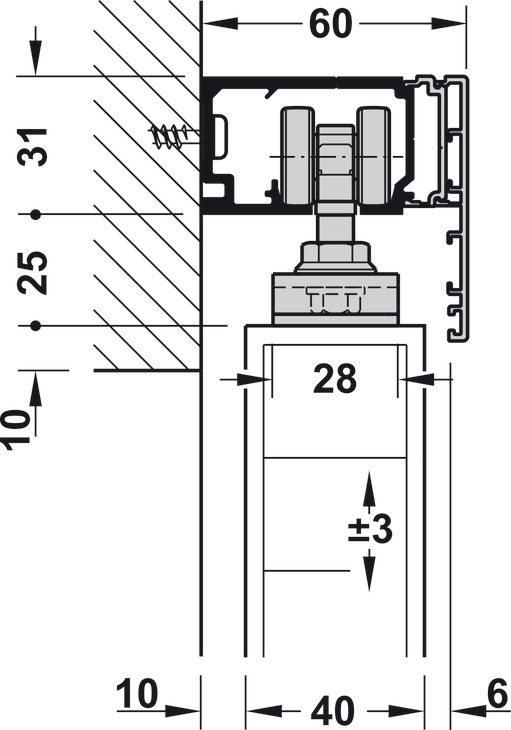

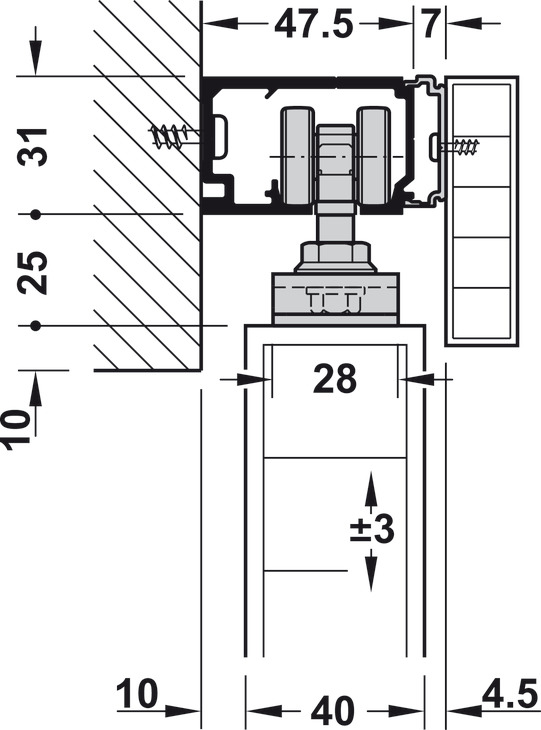

  - Controller installation options : Wall mounting

  - For door thickness : 28?–?40 mm

  - Adjustment facility : Height adjustment: ±3 mm

  - For door thickness min. :

  - Door width max. :

  - Area of application : for 1-leaf and 2-leaf sliding doors

  - For door height : ?2,700 mm

  - Running position : Top

  - Door processing : for screw fixing

  - Order reference

  - Please order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears with suspension screw and nut, M8

  - 2 support flanges

  - 2 track stopper with retaining spring

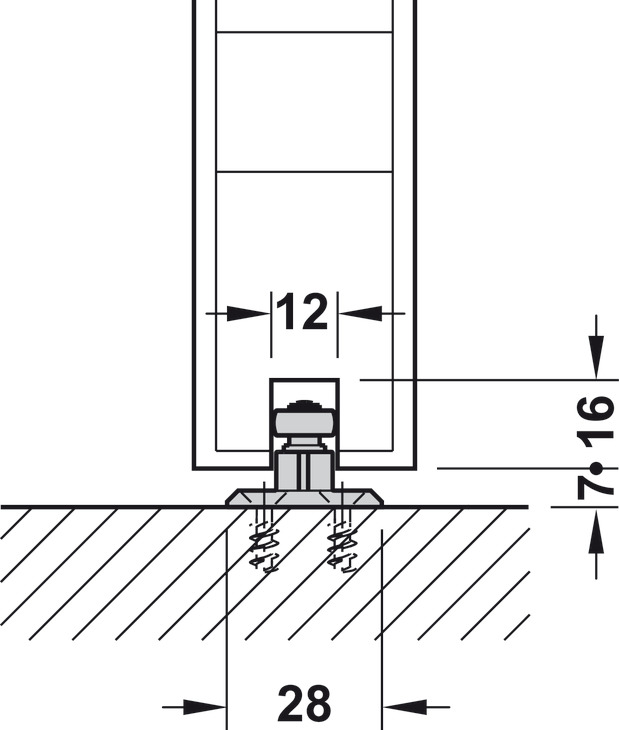

  - 1 floor guide, adjustable

  - 1 set of fixing screws


  Additional Information …

  Dormotion soft and self closing mechanism (optional)
