Hafele 941.02.036 Slido D-Line11 120P Fitting Set, with 2 track stoppers
, 94102036, 941-02-036 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 941.02.036

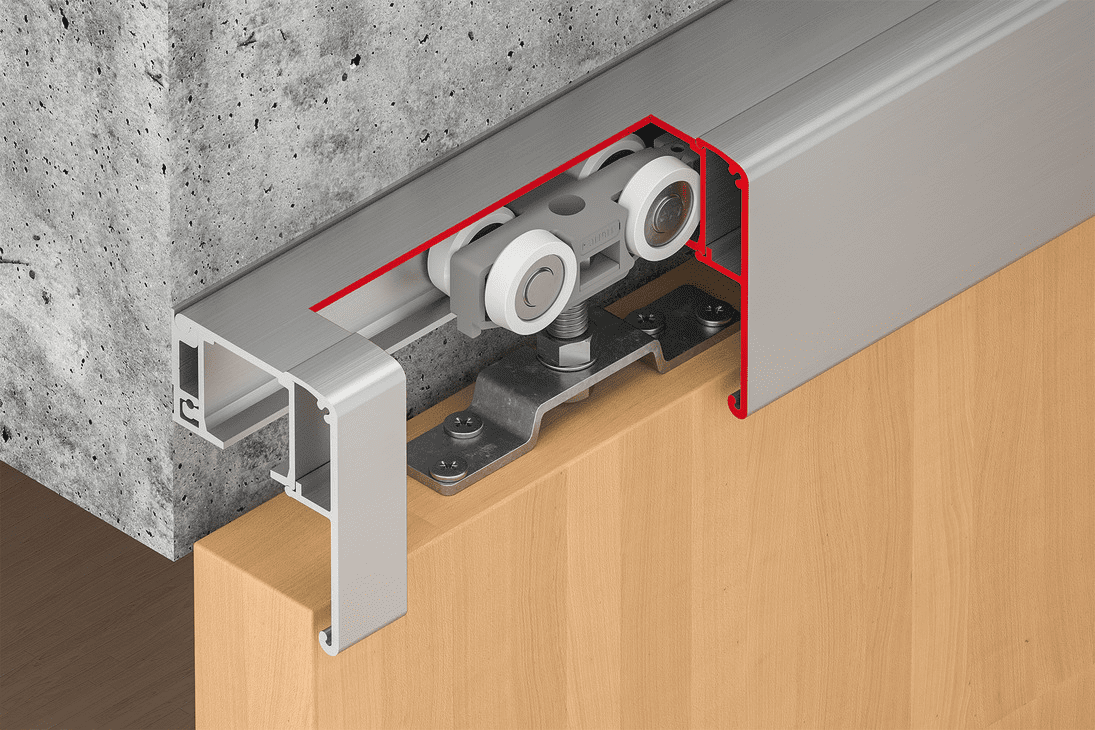

Product Title: Sliding Door Hardware, Slido D-Line11 120P, set without running track, for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 120 kg, Without soft and self closing mechanism, door width ?500 mm
Category: Sliding Door Hardware, Slido D-Line11 50P to 120P, set without running track, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable
Item Details
- Soft and self closing mechanism:
- low opening force easy and convenient operation
- tested with increased closing speed up to 0.5 m/s
- Can be retrofitted or replaced at any time
- Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N
- Shock absorber:
- Closing speed with shock absorber tested up to 0.4 m/s
- Number of doors : 1.00
- For door material : wood
- Controller installation options : Ceiling installation, Wall mounting
- Adjustment facility : Height: (3/16") +/-5
- Area of application : for 1-leaf and 2-leaf sliding doors
- Note on door weight : per door
- Running position : Top
- Adjustment facility : height adjustment
- Installation : Suspension with screwed on support flange
- Order reference
- Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
- Supplied with:
- 2 running gears
- 1 clear threshold floor guide
- 2 track buffer with retaining spring
Additional Information
No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.For sets without or with soft and self closing mechanism on one side: If required, soft and self closing mechanism or shock absorber can be retrofitted.
End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).Data Sheet
Product Resources
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Single Running Track, Pre-drilled, W x H: 31 x 33 mm (choose one):For Slido D-Line11, Mill Finish, Length: 6 6 3/4 (2 m)
For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m)
For Slido D-Line11, Mill Finsh, Length: 9 10 1/8 (3 m )
For Slido D-Line11, Clear Anodized Finish, Length: 9' 10 1/8" (3 m)
For Slido D-Line11, Mill Finish, Length: (19 8 1/4) 6 m
For Slido D-Line11, Clear Anodized Finish, Length: 19' 8 1/4" (6 m)940.43.921
940.43.922
940.43.931
940.43.932
940.43.961
940.43.962Click to order
Click to order
Click to order
Click to order
Click to order
Click to order
Single running track, Pre-drilled, W x H: 47.5 x 47 mm (choose one):For Slido D-Line11, Aluminum, silver colored anodized, length: 3,000 mm 940.43.930 Click to order
Single Upper Track, Wall mounted (choose one):For Slido D-Line11, Aluminum, clear anodized, length 2000 mm
For Slido D-Line11, Aluminum, clear anodized, length 3000 mm
For Slido D-Line11, Aluminum, clear anodized, length 6000 mm941.25.602
941.25.603
941.25.606Click to order
Click to order
Click to order
Double running track, Pre-drilled, W x H: 70 x 33 mm (choose one):For Slido D-Line11, Aluminum, silver colored anodized, length: 2,000 mm
For Slido D-Line11, Aluminum, silver colored anodized, length: 3,000 mm
For Slido D-Line11, Aluminum, silver colored anodized, length: 6,000 mm941.02.920
941.02.930
941.02.960Click to order
Click to order
Click to order
Double Running Track, Pre-Drilled, W x H: 81 x 33 mm (choose one):For Slido D-Line11, clear anodized, length: 2,000 mm
For Slido D-Line11, unfinished; length: 2,000 mm
For Slido D-Line11, clear anodized, length: 3,000 mm
For Slido D-Line11, unfinished; length: 3,000 mm
For Slido D-Line11, clear anodized, length: 6,000 mm941.02.820
941.02.821
941.02.830
941.02.831
941.02.860Click to order
Click to order
Click to order
Click to order
Click to order
Optional Accessories:- Soft and Self Closing Mechanism, Slido Classic
- Shock absorber, Slido Classic
- Mounting rail, Pre-drilled, width 19 mm
- Mounting rail, pre-drilled, width 8 mm
- Mounting Rail, High, Pre-Drilled, Width 19 mm
- Mounting Rail, High, Pre-Drilled, Width 8 mm
- Safety Pin and Safety Screw Set, For Running Track and Mounting Rail
- Mounting bracket, with screw and nut
- Clip-on panel, for running track
- Clip-on panel, for running track
- End cap set, for running track 31 x 33 mm (W x H)
- End cap set, Height 68 mm, for running track with panel 12.5 x 68 mm (W x H)
- End Cap Set, for Hδfele Slido D-Line11, height 68 mm
- Floor Guide, Plastic, Gray
- Floor Guide, Slido Classic 40-P-120-P
- Sliding Door Hardware, Slido D-Line11 Synchro, additional set for 50-P to 80P
- Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I
- Fitting set, Slido D-Line11 Stacking Additional Set for 50P120P, 50C120C and 50I120I
