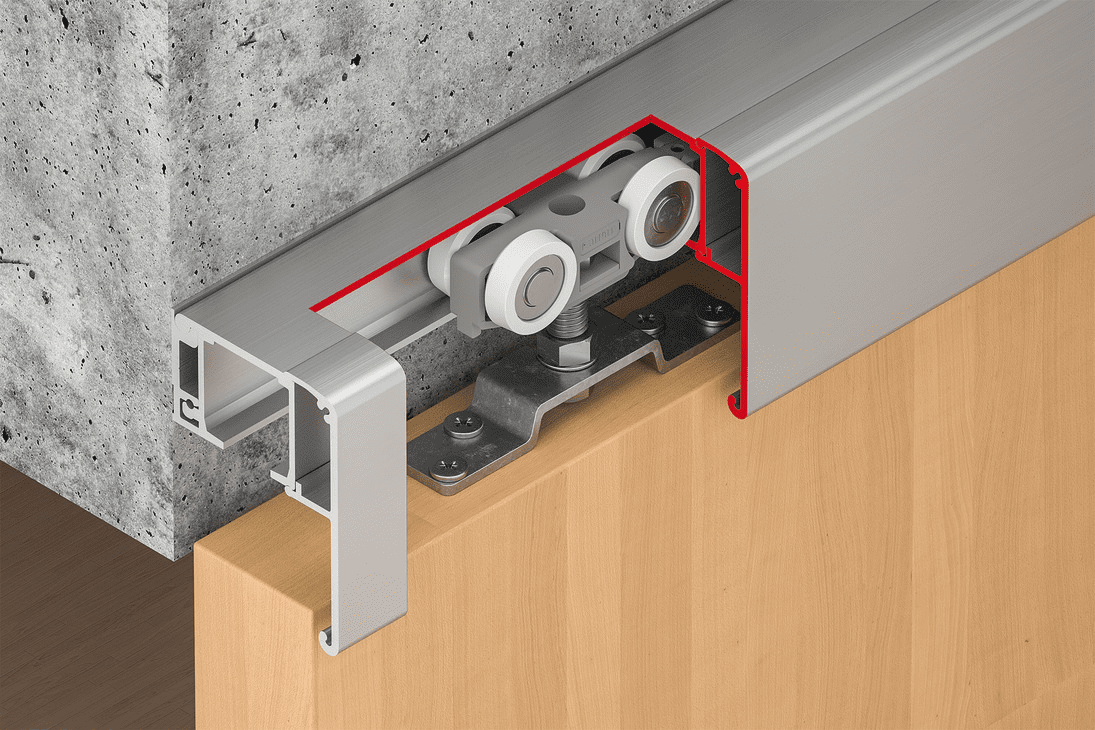

Hafele 941.02.037 Slido D-Line11 120P Fitting Set, with 1 track stopper and 1 soft closing mechanism, 100 mm stroke

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.02.037

  Product Title: Sliding Door Hardware, Slido D-Line11 120P, set without running track, for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 120 kg, With soft and self closing mechanism on one side, door width ?561 mm

  Category: Sliding Door Hardware, Slido D-Line11 50P to 120P, set without running track, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable

  Item Details …

  - Soft and self closing mechanism:

  - low opening force – easy and convenient operation

  - tested with increased closing speed up to 0.5 m/s

  - Can be retrofitted or replaced at any time

  - Accessibility: Opening force with door weight 50 kg: 20 N / 80 kg: 23 N

  - Shock absorber:

  - Closing speed with shock absorber tested up to 0.4 m/s

  - Number of doors : 1.00

  - For door material : wood

  - Controller installation options : Ceiling installation, Wall mounting

  - Adjustment facility : Height: (3/16") +/-5

  - Area of application : for 1-leaf and 2-leaf sliding doors

  - Note on door weight : per door

  - Running position : Top

  - Adjustment facility : height adjustment

  - Installation : Suspension with screwed on support flange

  - Order reference

  - Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears (1 with soft and self closing mechanism)

  - 1 clear threshold floor guide

  - 1 track buffer with retaining spring

  - 1 release device with stopper for soft and self closing mechanism


  Additional Information …

  No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.For sets without or with soft and self closing mechanism on one side: If required, soft and self closing mechanism or shock absorber can be retrofitted.



  End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido D-Line11 50P, 80P, 120P

  TCH_Architectural_Hardware_2022| Page 1.25
