Hafele 941.20.010 HAWA Junior 120/GP Fitting Set (1 kit), 94120010, 941-20-010Zoom

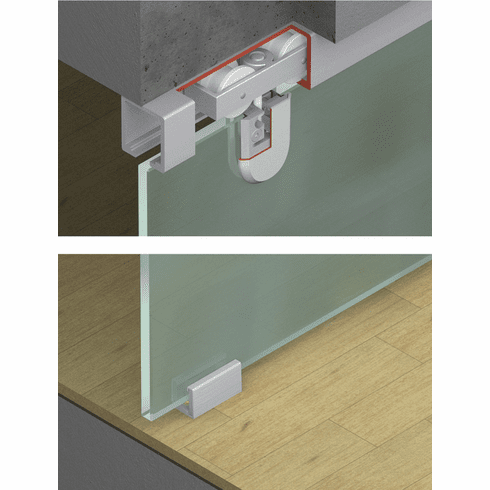

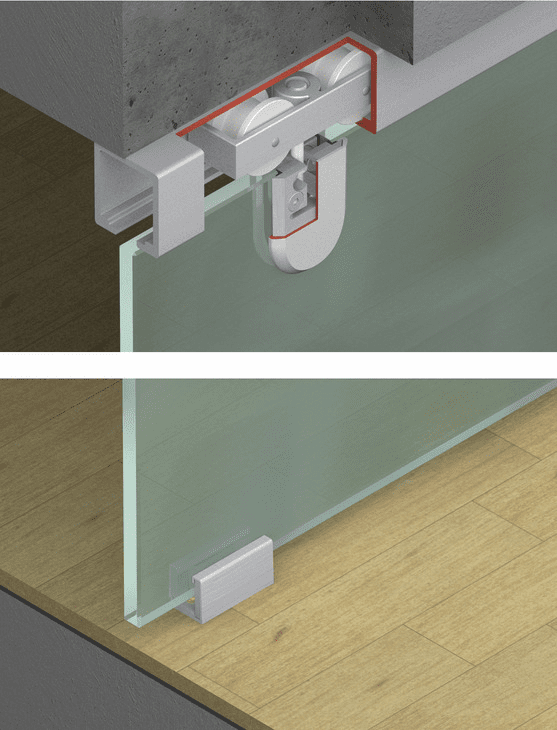

Hafele 941.20.010 Sliding Door Fitting, Hawa Junior 120/GP, set for 1-leaf glass sliding doors, ceiling installation, height adjustable, low installation height, for door weight up to 120 kg, without running track, floor guide and cover caps

$940.48$1,175.60You Save: $235.12 (20%)
Item# Hafele-941-20-010
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.20.010

    Product Title: Sliding Door Fitting, Hawa Junior 120/GP, set, for 1-leaf glass sliding doors, ceiling installation, height adjustable, low installation height, for door weight up to 120 kg, without running track, floor guide and cover caps

    Category: Sliding Door Fitting, Hawa Junior 120/GP, set, for 1-leaf glass sliding doors, ceiling installation, height adjustable, low installation height, for door weight up to 120 kg, without running track, floor guide and cover caps

    Item Details …

    -     Smooth, quiet operation

    - Maintenance-free

    - Vertical adjustment without removing the glass door

    - Rattle-free bottom guide

    - Simple installation

    - Low installation height

    - Model series : Junior

    - Model : 120 GP without soft and self closing mechanism, with track buffer on both sides

    - Version : without running track, without floor guide, without cover caps

    - For door weight : ?120 kg

    - For door width : ?3,000 mm

    - Material/finish : Aluminium, Plastic

    - For door material : glass

    - Controller installation options : Ceiling installation

    - For glass thickness with tempered safety glass : 8 mm, 10 mm, 12 mm, 12.7 mm

    - For glass thickness with laminated glass : 8,7–12,7 mm

    - Adjustment facility : Vertical adjustment without removing the glass door

    - Number of doors : 1.00

    - For min. glass thickness (inches) : Tempered glass: 5/16" - 1/2", laminated glass: 5/16" - 1/2"

    - Load bearing capacity : Max. 264 lbs.

    - Area of application : For 1 doors

    - Suitable for : Minimum installation height

    - For door height : ?4,000 mm

    - For glass type : Tempered safety glass, Laminated glass

    - Running position : Top

    - Installation : Suspension with hanger bolt, Point fixing with glass retainer

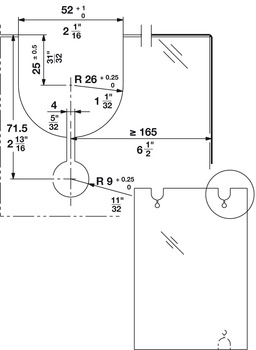

    - Door processing : With glass preparation

    - Standard : Certified in compliance with EN 1527:2013

    - Classification in compliance with EN 1527 : -|6|3|-|1|0|-|1|3

    - Number of doors per system max. : 1 to 2

    - Order reference

    - Order 2 sets for 2-leaf sliding doors.

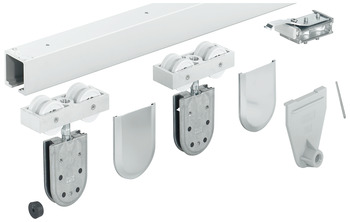

    - Supplied with:

    - 2 running gears

    - 2 hanger bolts M12 with mounting screws

    - 2 point fixing sets with glass holder

    - 2 track buffer with retaining spring

    - 1 disposable drilling jig

    - 1 rubber wall buffer

    - 1 height adjusting pin


    Additional Information …

    The complete fitting set is always delivered without running and guide rails, please order separately.
