Hafele 943.30.008 Hawa Aperto 60/H, set, for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 943.30.008

  Product Title: Sliding Door Hardware, Hawa Aperto 60/H, set, for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm

  Category: Sliding Door Hardware, Hawa Aperto 60/H, set, for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm

  Item Details …

  - Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90º or parallel to the sliding axis

  - For door width : 550?–?1,500 mm

  - For door thickness min. : 1 1/2"

  - For door thickness max. : 2"

  - Door weight max. : 130 lbs.

  - For door material : wood

  - Area of application : Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildingslocking of the system with one lock

  - Suitable for : Flexible room or visual separation, Commercial and public buildings, Room-high solutions

  - Number of doors per system max. : ?8

  - For door height : ?2,600 mm

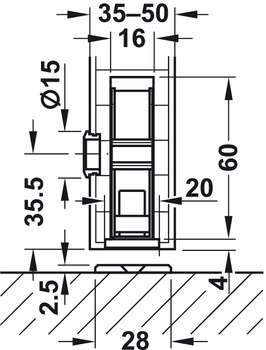

  - For door thickness : 35?–?50 mm

  - For door weight : ?60 kg

  - Note on door width : Parking area 90°: 550–950 mm, parallel parking area: 550–1500 mm

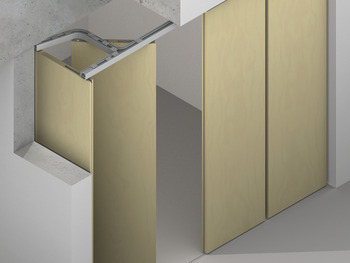

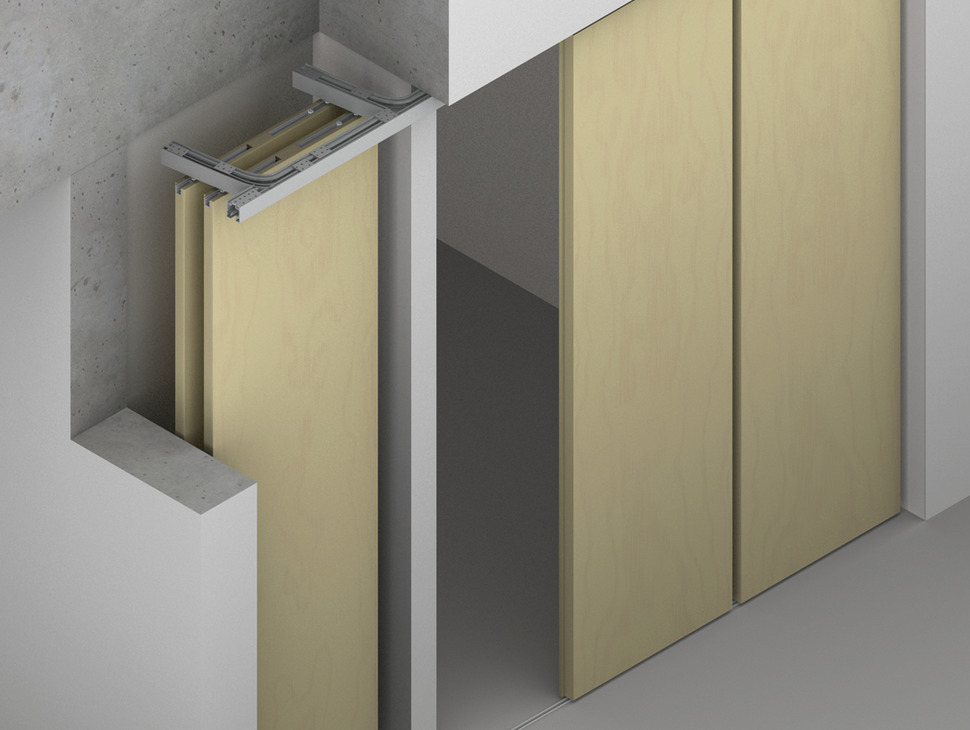

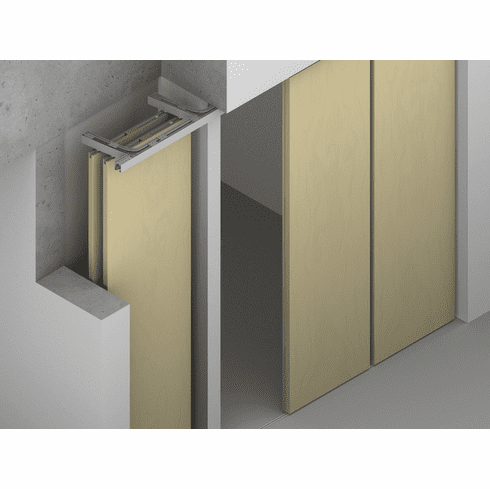

  - Version : Door can be optionally stacked parallel or 90° to the running direction in the open positionPartial sets for sliding doors, hinged doors and parking areaswith guide track, optionally without guide track with low loadSystem flush in closed positionlight and quiet curve running

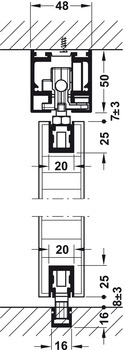

  - Running system : Concealed in track

  - Controller installation options : Ceiling installation

  - Adjustment facility : Height adjustment: ±3 mm, Vertically: (+/- 1/8") +/- 3 mm

  - Material/finish : Silver colored, anodized

  - Order reference

  - Several individual elements must be ordered in order to achieve a functional system with the Aperto 60/H sliding door fitting.

  - The following must be determined before ordering:

  - > Type of guidance (with or without bottom guide track)

  - > Hinged door (suitable for parking area, for use with or without bottom track)

  - > Type of parking area (parallel or 90° to sliding direction)

  - > Single bolt lock with square/hexagonal nut or profile cylinder

  - > Width of system, determines number of individual elements

  - The required individual elements can be determined from these specifications:

  - > Door types (A – I)

  - > Stacking (parallel or 90°)

  - 8 different system types can be created by combining the individual elements, see system types.

  - To order a system type, the individual elements that are listed as sets must be selected.

  - The following must also be ordered:

  - > the top running tracks

  - > the bottom guide tracks (optional)

  - > the internal track covering for the parking area (optional)

  - > Quantity and length of sealing and rubber profiles (optional)

  - > Quantity, length and type of Hawa edge protection profile (optional)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Aperto 60/H 90° installation instructions

  Aperto 60/H parallel installation instructions

  HAWA Aperto 60/H



• Specifications



  Please contact us for more information about this product

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Suspension Profile, Hawa Aperto (choose one):


  • 250 x 20 x 25 (9 27/32" x 28/32" x 1")

    943.31.125

    Click to order



  Top Running Track, Single (choose one):


  • for Hawa Aperto 60 H, Length: 2.5 (8' 2 7/16") for Hawa Aperto 60 H, Length: 3.5 (11' 5 13/16") for Hawa Aperto 60 H, Length: 6 m (19' 8 1/4")

    943.30.925 943.30.935 943.30.960

    Click to order Click to order Click to order



  Guide Channel, Not drilled, 16 x 16 mm (choose one):


  • for Hawa Aperto 60/H/GL, Length: 6 m (19' 1/4")

    943.31.960

    Click to order



  Guide Channel, Pre-drilled, 16 x 16 (5/8" x 5/8") (choose one):


  • for Hawa Puro, Aperto, Length: 3.5 m (11' 5 13 /16") for Hawa Puro, Aperto, Length: 6 m (19' 1/4")

    943.31.835 943.31.860

    Click to order Click to order



  Optional Accessories:



  • Edge Protection Profile, Hawa, accessories for wooden doors, sliding door fittings
  • Sealing Profile, Drilled
  • Fixing Plate, for 2 x single running track
  • Cover cap, for 2 x single running track
  • Single Bolt Lock, with Square/Hexagonal Socket, Ø9 mm (11/32") Bolt
  • Single Bolt Lock, for 17 mm (11/16") Profile Cylinder, Ø9 mm (11/32") Bolt
  • Single Bolt Lock, with Square/Hexagonal Socket, Ø9 mm (11/32") Bolt
  • Single Bolt Lock, for 17 mm (11/16") Profile Cylinder, Ø9 mm (11/32") Bolt
  • Strike Plate, Ø9 (11/32") Bolt
  • Socket Key, for Bolt Lock
  • Suspension Carriage, with Integrated Mounting Block and M8 Screw
  • Running Gear, with M8 Screw, with 2 Rollers
  • Floor Guide, with Mounting Block
  • End cap, for Carrier Profile, 20 x 25 mm
