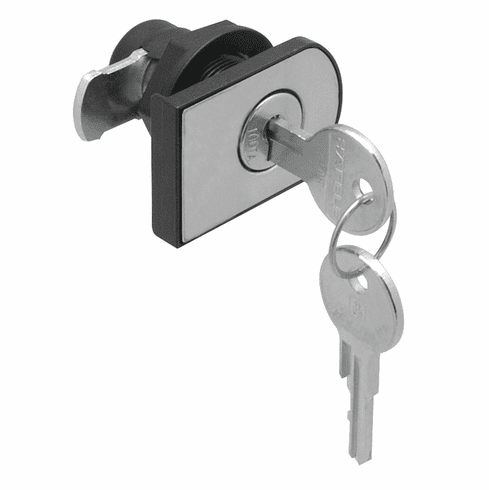

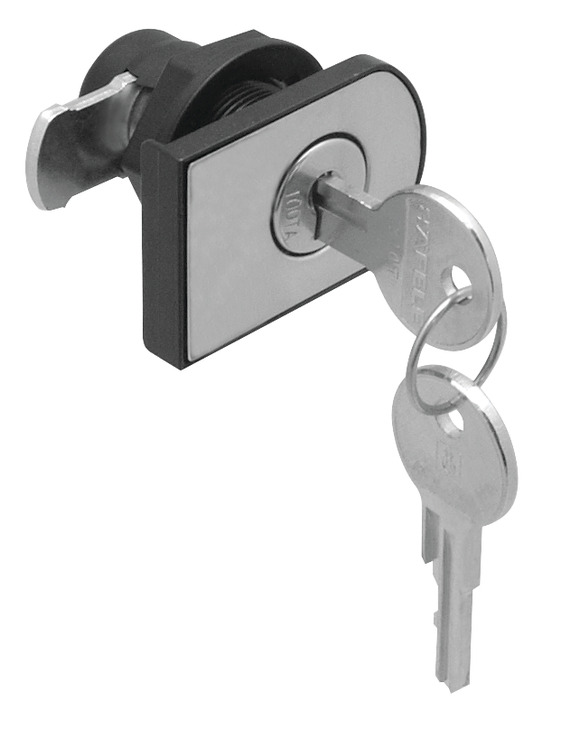

Hafele 233.17.630 Glass Door Lock, Horizontal Installation Timberline- modular removable core locking system, Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 233.17.630

  Product Title: Glass Door Lock, Horizontal Installation, Timberline modular removable core locking system, Matt nickel

  Category: Glass Door Lock, Horizontal Installation, Timberline modular removable core locking system

  Item Details …

  - Small high quality appearance

  - Fully cushioned to avoid glass damage

  - – Neoprene gasket on front surface

  - – Plastic tightening screw on back surface

  - Closure travel : 90° (reversible)

  - For max. glass thickness (inches) : 3/8"

  - Version : Neoprene gasket on front surface, Plastic washer on back surface

  - Material : Outer body: NylonFace plate: Brass-platedFinish cap: PlasticLever: Steel

  - Type of locking : with 5 pin tumblers

  - For glass thickness : ≤10 mm

  - For glass thickness (inches) : 3/8"

  - Installation : Unique retainer nut allows secure tightening by handTwo piece design for quick mounting - user does not need to assemble cam

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.10-10.11.pdf

  Hafele 233.17.630, 233-17-630, 23317630, 233.17


  Specifications/Hafele Catalog - Page# FC10.11: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Snap-In Lock Core, Keyed Different
  • Angle Strike, 90°, Screw-Mounted, 22 x 12 mm
  • Angle Strike, 90°, 22 x 8 mm
  • Snap-In Lock Core, Keyed Alike
