Manufacturer: Hafele
Item: 432.13.508
Product Title: Soft Closer Mechanism, for Wood or Metal Boxes, For metal box systems
Category: Soft Closer Mechanism, for Wood or Metal Boxes,
Item Details …
- The DIN EN 15338, level 3, is exceeded with tested 100,000 cycles.
- Note: One or two-sided installation is determined by the width, running properties and weight capacity of the runners. Always use 2 mechanisms for drawers wider than 400 mm (15 3/4â€) or if the drawer depth exceeds the width.
- Area of application : Roller runnersball bearing runners without retainer retention devicegroove mounted runners
- Material : Plastic
- Color/finish : Light gray and black
- Load bearing capacity : 50.00 kg
- Load bearing capacity : 110 lbs; two-sided installation
- Note on load bearing capacity : Load bearing capacity: useful load of 25 kg with one-sided installationLoad bearing capacity: useful load of 50 kg with two-sided installation

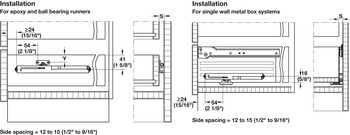

- Installation : Screw-on
- Installation reference : Note: One or two-sided installation is determined by the width, running properties and weight capacity of the runners. Always use 2 mechanisms for drawers wider than 400 mm (15 3/4â€) or if the drawer depth exceeds the width.
- Supplied with:
- 1 soft and self closing mechanism

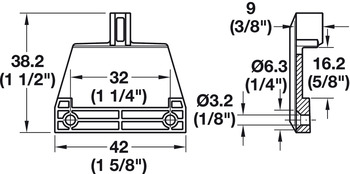

- 1 driver
- 1 set of installation instructions
Additional Information …
The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners). Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer's depth exceeds its width.
