Hafele 504.69.815 iMOVE Pull Down Unit, for Face Frame, with Shim 30" cabinet width, champagne/maple, single shelf

Product Information

• Description

  Hafele 504.69.815 iMOVE Pull Down Unit, for Face Frame, with Shim
  30" cabinet width, champagne/maple, single shelf



  Load bearing capacity : Up to 17.64 lbs

  Material : Surround: Steel
  Bottom and Back: Melamine

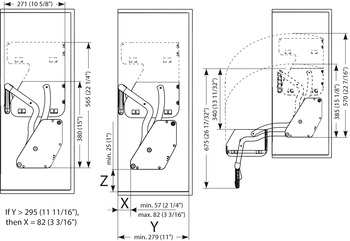

  Installation dimensions :

  Installation Guide iMove Single Shelf

  Dimensions	Hinged Door	Hinged Door
  *Cabinet heights vary with the individual installation situations.
  Hinge protrusion	<1 (25 mm)	>1 (25 mm)
  Installation height, hinge	2 9/16 (65 mm)	2 9/16 (65 mm)
  Installation height, iMove	1 (25 mm)	3 5/32 (80 mm)
  Installation depth, iMove	2 1/4 (57 mm)	2 1/4 (57 mm)
  Clear inside cabinet depth	y min 11 (279 mm)	y min 11 (279 mm)
  Minimum cabinet height*	20 7/16 (520 mm)	22 7/8 (580 mm)



  Installation dimensions :

  Installation Guide iMove Double Shelf

  Dimensions	Hinged Door	Hinged Door
  *Cabinet heights vary with the individual installation situations.
  Hinge protrusion	<1 (25 mm)	>1 (25 mm)
  Installation height, hinge	2 9/16 (65 mm)	2 9/16 (65 mm)
  Installation height, iMove	1 (25 mm)	3 5/32 (80 mm)
  Installation depth, iMove	2 1/4 (57 mm)	2 1/4 (57 mm)
  Clear inside cabinet depth	y min 11 (279 mm)	y min 11 (279 mm)
  Minimum cabinet height*	27 29/32 (520 mm)	30 5/16 (580 mm)





  Supplied with :

  Mounting material and instructions
