Hafele 833.74.344 LED2063 12 volts direct current 4.8 watts per meter 2700K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.344

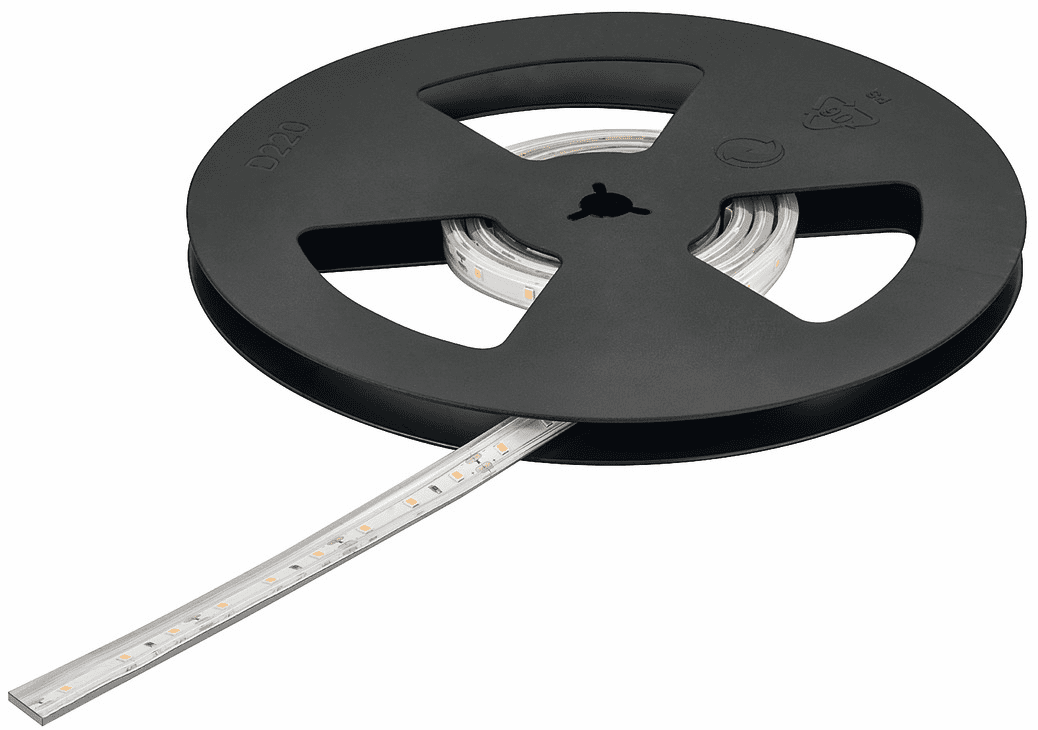

  Product Title: LED strip light with silicone sleeve, Häfele Loox5 LED 2063, 12 V, monochrome, (5/16") 8 mm, 60 LEDs/ m, 4.8W/ m, Warm white 2700 K, (196 7/8") 5 m available length

  Category: LED strip light with silicone sleeve, Häfele Loox5 LED 2063, 12 V, monochrome, (5/16") 8 mm, 60 LEDs/ m, 4.8W/ m

  Item Details …

  - Equipped with high-quality Samsung® LEDs

  - Nominal voltage : 12.00 V

  - Wattage/m : 4.80 W

  - Max. strip length (visual) : 6.00 m

  - Height (inch) : Strip: 1/16", silicone sleeve: 3/16"

  - Width (inch) : Strip: 5/16", silicone sleeve: 3/8"

  - Dimmable : yes

  - Area of application : Plinths, behind furniture and objects, Bathroom (zone 2)

  - Material : Silicone

  - Color : White

  - Silicone tube width : 10.00 mm

  - Silicone hose height : 4.80 mm

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Contact surface length : 4.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP44

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.For maximum wattage-dependent strip length at the driver, see technical data for LED strip lights.If required, you can implement an IP20 version with leads, interconnecting leads and clip connectors for Häfele Loox5 8 mm monochrome LED strip lights, see accessories for LED strip lights monochrome 8 mm
