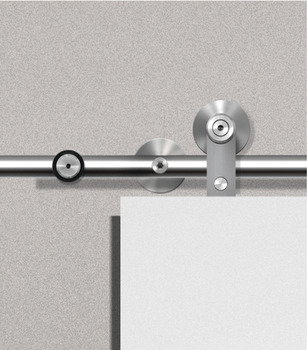

Hafele 940.64.021 Hollow Stainless Steel Track Set, Flatec V For Wood Doors, 1.8 m Length, Matt

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.64.021

  Product Title: Hollow Stainless Steel Track Set, Flatec V, For Wood Doors, 1.8 m Length, Matt

  Category: Hollow Stainless Steel Track Set, Flatec V, For Wood Doors

  Item Details …

  - Additional running gears required for two door applications

  - Smooth quiet operation

  - Maintenance-free

  - Simple installation

  - Stainless steel components

  - Number of doors : 1.00

  - For door material : wood

  - For door weight : ?100 kg

  - Material/finish : Stainless steel

  - Controller installation options : Wall mounting

  - For door thickness : 35?–?45 mm

  - Adjustment facility : Non-height adjustable

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : 220 lbs.

  - Area of application : For 1 sliding wood door

  - Running position : Top

  - Order reference

  - Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.

  - Supplied with:

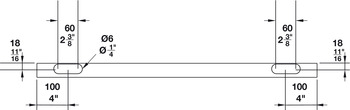

  - Upper track rod

  - 4 - 5 wall attachments

  - 2 door stoppers

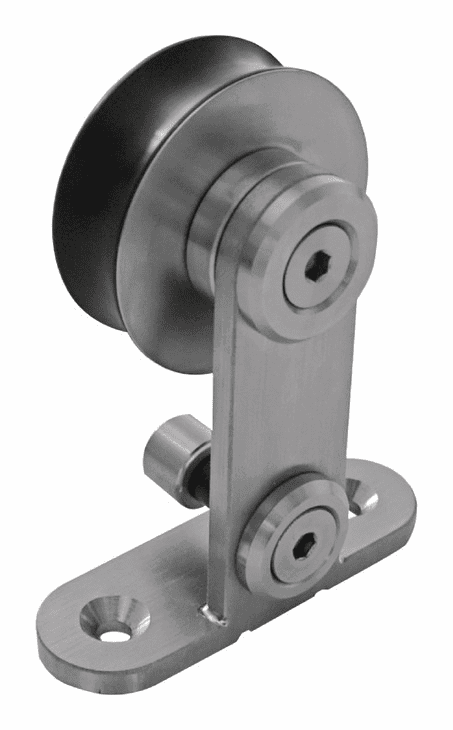

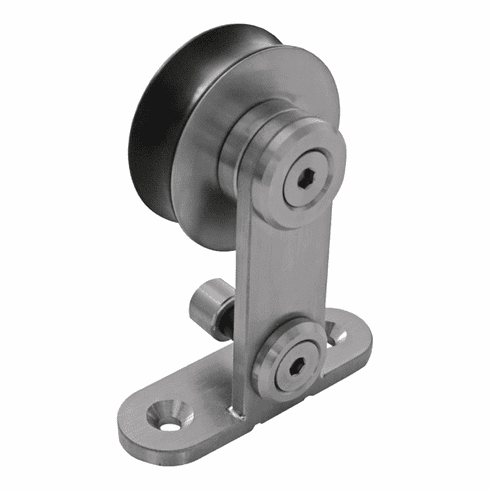

  - 2 running gears

  - Lower guide

  - Hex key

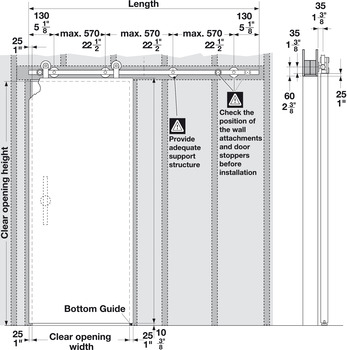

  - Installation plan included in fitting set, also available for planning and execution upon request

• Data Sheet

  Detailed Data Sheet
