Hafele 941.07.074 Solid Stainless Steel Track Set, Flatec I For 1 Sliding Wood Door, 1.8 m Length

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.07.074

  Product Title: Solid Stainless Steel Track Set, Flatec I, For 1 Sliding Wood Door, 1.8 m Length

  Category: Solid Stainless Steel Track Set, Flatec I, For 1 Sliding Wood Door

  Item Details …

  - Additional running gears required for two door applications

  - Smooth quiet operation

  - Maintenance-free

  - Simple installation

  - Stainless steel components

  - Number of doors : 1.00

  - For door material : wood

  - For door weight : ?100 kg

  - Material/finish : Stainless steel

  - Controller installation options : Wall mounting

  - For door thickness : 35?–?45 mm

  - Adjustment facility : Height adjustment: ±3 mm, Height: (±1/8") ±3 mm

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Load bearing capacity : 220 lbs.

  - Area of application : For 1 sliding wood door

  - Running position : Top

  - Order reference

  - Item numbers stated are valid for 1 pc. When ordering individual components, please indicate the desired quantity. Order hanger bolts separately.

  - Supplied with:

  - Upper track rod

  - 3-4 wall attachments

  - 2 door stoppers

  - 2 running gears

  - Lower guide

  - Face spanner wrench

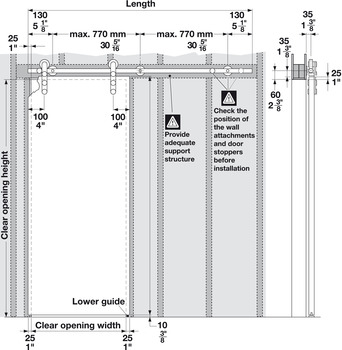

  - Installation plan included in fitting set, also available for planning and execution upon request

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Flatec I Wood Instatllation - Mounting Instructions

  Flatec I Wood Planning Guide - Mounting Instructions

  TCH_Architectural_Hardware_2022|Page 1.159



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.94-1.95.pdf

  Hafele 941.07.074 Flatec I Wood Fitting Set, stainless steel matt, for
